About Ducab Power Plus Medium Voltage Cables

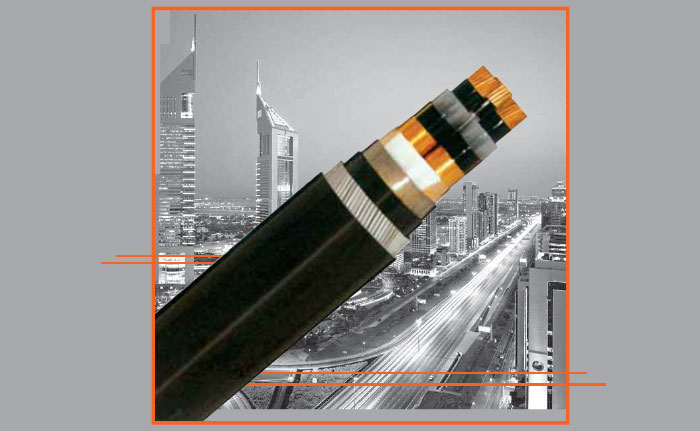

Ducab Power Plus Medium Voltage Cables

USE
Ducab Power Plus Medium Voltage Cables are used for bulk power transmission and distribution

FEATURE
Simultaneous triple extrusion of three layers of insulation under inert atmosphere, rated from 3.3/6.6 kV up to U0/U = 19/33 kV

MANUFACTURED TO
BS 6622 & IEC 60502-2 specifications for the following listed voltage grades - 3800/6600V, 6350/11000V, 8700/15000V, 12700/22000V and 19000/33000V.

TYPE TESTED AND CERTIFIED BY
KEMA and ESMA

RANGE
Single core cables: copper / aluminium, armoured / un-armoured, PVC/PE/LSF sheathing from 50mm˛ to 1000 mm˛.

Three core cables: 6.6kV to 33kV with copper/ aluminium, armoured and un-armoured, PVC/PE/LSF sheathing up to 400mm˛

BENEFIT
Virtually discharge free XLPE insulation ensures a long and trouble free service life.

NOTE
Upon request, Ducab Powerplus Medium Voltage Cables can be customized with a range of sheathing, screening, taping and amouring options for different power supply requirements.

Brochures

Brochures
Preview Description Format Size Open
Ducab Power Plus Medium Voltage Cables
PDF 20.3 MB Open
