About Thermostatic Head K

Thermostatic Head K

Thermostatic heads are used to control the temperature of individual rooms using, for example, heaters, convectors, and radiators. Our thermostatic heads come available with built in sensors or remote sensors, anti-theft mechanisms and positive shut-off functions. All feature our incompressible liquid-filled sensor and guarantee reliable and precise control. Also thermostatic heads with direct connection for valve bodies from other manufacturers are available.

PRODUCT INFORMATION

For all thermostatic valve bodies and radiators with integrated valves
Thermostatic heads are used to control the temperature of individual rooms using, for example, heaters, convectors, and radiators. Our thermostatic heads come available with built in sensors or remote sensors, anti-theft mechanisms and positive shut-off functions. All feature our incompressible liquid-filled sensor and guarantee reliable and precise control. Also thermostatic heads with direct connection for valve bodies from other manufacturers are available.

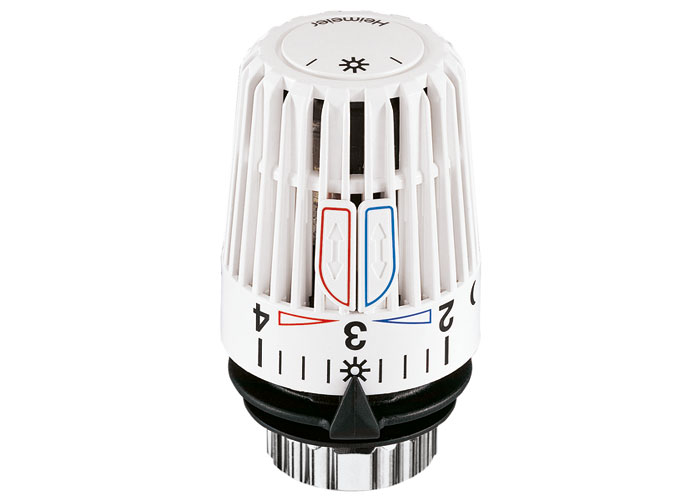

Thermostatic head K - with built-in sensor

Technical description
Liquid-filled thermostat. High pressure power, lowest hysteresis, optimal closing time.
Stable control behavior even in the case of small calculated p-band variation (<1K).
Meet all requirements of the German EnEV and DIN V 4701-10.
Markings indicate upper and lower temperature range; two energy saving clips can be used to limit settings.
Temperature range is limited on both ends and can be blocked using covered stop clips.
Setting indicators on the face of the head and markings designed for the visually impaired.
Rotation direction indicator.
Symbols for basic setting and nighttime reduction.
Brief data including the most important settings.
White cover RAL 9016 printed with scale.
Designed to be mounted on all HEIMEIER thermostatic bodies and radiators with integrated valves which have an M 30 x 1.5 thermostatic insert.
Refer also to the assembly and operating instructions.
E-Pro time adaptor for time-dependent room temperature control without timeconsuming programming, see accessories.

Thermostatic head K - with remote sensor

Technical description
Liquid-filled thermostat. High pressure power, lowest hysteresis, optimal closing time.
Stable control behavior even in the case of small calculated p-band variation (<1K).
Meet all requirements of the German EnEV and DIN V 4701-10.
Markings indicate upper and lower temperature range; two energy saving clips can be used to limit settings.
Temperature range is limited on both ends and can be blocked using covered stop clips.
Setting indicators on the face of the head and markings designed for the visually impaired.
Rotation direction indicator.
Symbols for basic setting and nighttime reduction.
Brief data including the most important settings.
Capillary tube coil for unused capillary tube.
White cover RAL 9016 printed with scale.
Designed to be mounted on all HEIMEIER thermostatic bodies and radiators with integrated valves which have an M 30 x 1.5 thermostatic insert. Refer also to the assembly and operating instructions.
Special models can be designed upon request.
E-Pro time adaptor for time-dependent room temperature control without timeconsuming programming, see accessories.

Thermostatic head DX - with built-in sensor

Technical description
Liquid-filled thermostat.
High pressure power, lowest hysteresis, optimal closing time.
Stable control behavior even in the case of small calculated p-band variation (<1K).
Meet all requirements of the German EnEV and DIN V 4701-10.
Reduced size in length and diameter.
White cover RAL 9016 printed with scale.
Designed to be mounted on all HEIMEIER thermostatic bodies and radiators with integrated valves which have an M 30 x 1.5 thermostatic insert.
Refer also to the assembly and operating instructions.
E-Pro time adaptor for time-dependent room temperature control without timeconsuming programming, see accessories.

Thermostatic head D - with built-in sensor

Technical description
Liquid-filled thermostat.
High pressure power, lowest hysteresis, optimal closing time.
Stable control behavior even in the case of small calculated p-band variation (<1K).
Meet all requirements of the German EnEV and DIN V 4701-10.
With rotation direction indicator.
Reduced size in length and diameter.
White cover RAL 9016 printed with scale.
Designed to be mounted on all HEIMEIER thermostatic bodies and radiators with integrated valves which have an M 30 x 1.5 thermostatic insert.
Refer also to the assembly and operating instructions.
E-Pro time adaptor for time-dependent room temperature control without timeconsuming programming, see accessories.

Thermostatic head B - for public buildings

Technical description
Secured model designed for public buildings.
Liquid-filled thermostat.
High pressure power, lowest hysteresis, optimal closing time.
Stable control behavior even in the case of small calculated p-band variation (<1K).
Meet all requirements of the German EnEV and DIN V 4701-10.
Infinitely variable temperature setting using a special key without having to remove the protection cap.
Protection cap can be turned endlessly.
Protected against theft.
Flexural strength of the thermostatic head min. 1000 N.
White protection cap RAL 9016.
Designed to be mounted on all HEIMEIER thermostatic bodies and radiators with integrated valves which have an M 30 x 1.5 thermostatic insert.
Refer also to the assembly and operating instructions.
Special models upon request.

Thermostatic head F - Remote dial

Technical description
Liquid-filled thermostat.
High pressure power, lowest hysteresis, optimal closing time.
Stable control behavior even in the case of small calculated p-band variation (<1K).
Meet all requirements of the German EnEV and DIN V 4701-10.
Temperature range is limited on both ends and can be blocked using covered stop clips.
Setting indicators on the face of the head.
Rotation direction indicator.
Symbols for basic setting and nighttime reduction.
Brief data including the most important settings.
May be installed at an outlet box.
White cap RAL 9016 printed with scale.
Connection piece designed to be mounted on all HEIMEIER thermostatic bodies and radiators with integrated valves which have an M 30 x 1.5 thermostatic insert.
Refer also to the assembly and operating instructions.
Special models upon request.

Thermostatic head VDX - for radiators with integrated valves

Technical description
The HEIMEIER thermostatic head VDX combines perfected technology with contemporary design.
It has been specially designed for installation on radiators with integrated valves with M 30 x 1.5 connecting threads on the thermostatic insert.
Its new construction blends harmoniously with the radiator, creating a single integrated unit.
Liquid-filled thermostat.
High pressure power, lowest hysteresis, optimal closing time.
Stable control behavior even in the case of small calculated p-band variation (<1K).
Meet all requirements of the German EnEV and DIN V 4701-10.
White printed cap and trim RAL 9016.
Refer also to the assembly and operating instructions.

Thermostatic head WK - Angled form for radiators with integrated valves

Technical description
The HEIMEIER thermostatic head WK has been designed for radiators with integrated valves which have a thermostatic insert with an M 30 x 1.5 connecting thread.
The thermostatic head WK can be turned around for mounting on the left or right of the radiator. This allows you to use a single model for either mounting position.
Liquid-filled thermostat.
High pressure power, lowest hysteresis, optimal closing time.
Stable control behavior even in the case of small calculated p-band variation (<1K).
Meet all requirements of the German EnEV and DIN V 4701-10.
Markings indicate upper and lower temperature range; two energy saving clips can be used to limit settings.
Setting indicators on the face of the head and markings designed for the visually impaired.
Rotation direction indicator.
Symbols for basic setting and nighttime set-back.
Brief data including the most important settings.
White cap RAL 9016 printed with scale.
Refer also to the assembly and operating instructions.

Thermostatic head VK - with clamp connection for radiators with integrated valves

Technical description
The HEIMEIER thermostatic head has been designed to be mounted on radiators with integrated valves. The clamp connection with locking ring enables a direct connection to thermostatic inserts which do not have an M 30 x 1.5 connecting thread. The thermostatic head VK can be mounted in several different positions, each at 90.
Liquid-filled thermostat.
High pressure power, lowest hysteresis, optimal closing time.
Stable control behavior even in the case of small calculated p-band variation (<1K).
Meet all requirements of the German EnEV and DIN V 4701-10.
Markings indicate upper and lower temperature range; two energy saving clips can be used to limit settings.
Temperature range is limited on both ends and can be blocked using covered stop clips.
Setting indicators on the face of the head and markings designed for the visually impaired.
Rotation direction indicator.
Symbols for basic setting and nighttime set-back.
Brief data including the most important settings.
White cap RAL 9016 printed with scale.
Refer also to the assembly and operating instructions.

Thermostatic heads - with direct connection for valve bodies from other manufacturers

Technical description
Thermostatic head with direct connection to thermostatic valve bodies from other manufacturers.
Liquid-filled thermostat.
High pressure power, lowest hysteresis, optimal closing time.
Stable control behavior even in the case of small calculated p-band variation (<1K).
Meet all requirements of the German EnEV and DIN V 4701-10.
Limiting or locking of a setting.
Rotation direction indicator (except thermostatic head DX).
White cover RAL 9016 with printed scale.
