About TRIM, TRIM A

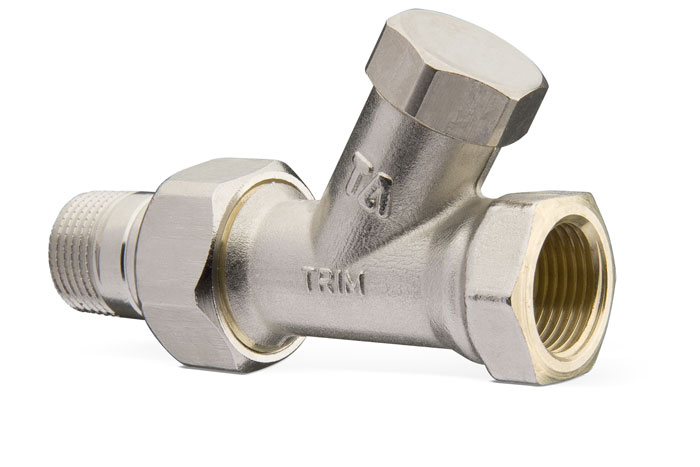

TRIM, TRIM A

This rugged balancing and shut-off return valve is designed for radiators and terminal units, and is the ideal product for heating, cooling and tap water systems.

PRODUCT INFORMATION

Return valves
This rugged balancing and shut-off return valve is designed for radiators and terminal units, and is the ideal product for heating, cooling and tap water systems.

Technical description

Application:
Heating and cooling systems
Tapwater systems

Function:
Adjustment
Pre-setting
Shut-off

Dimensions:
DN 10-20

Pressure class:
PN 16

Temperature:
Max. working temperature: 120°C
Min. working temperature: -10°C

Material:
TRIM:
Valve body: Brass
Disc: Brass
Spindle: Brass
Lid: AMETAL®
O-ring: EPDM

TRIM A:
Valve body: AMETAL®
Disc: AMETAL®
Spindle: AMETAL®
Lid: Brass
O-ring: Nitril
Straight union: AMETAL®

AMETAL® is the dezincification resistant alloy of TA.

Surface treatment:
Nickel-plated.

Marking:
TRIM: Valve body marked with TA.
TRIM A: Valve body marked with TA, TRIM and inch size.
