Avanti Systems Transverto Monoblock Pre-Built Interior Glass Walls


  Other News
  Subscribe to newsletter
14 Jan 2016

The Transverto Monoblock aluminum-framed system ships in pre-assembled units that will bring your space from dream to done faster than any other system we offer.

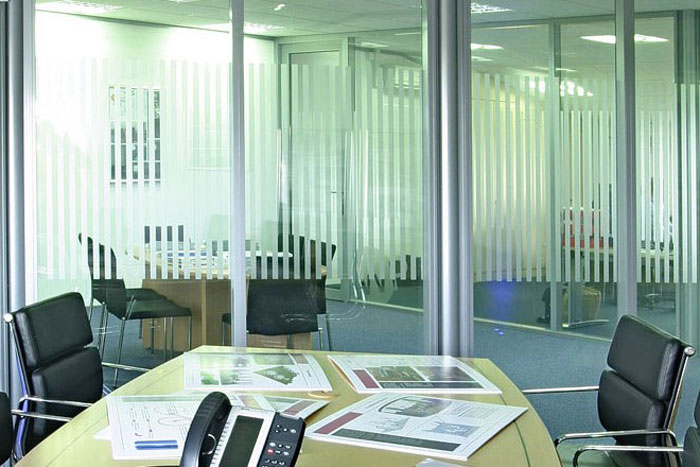

Avanti Systems Transverto Monoblock Pre-Built Interior Glass Walls

Key Features

  • System can span 16’ (4.88 m) in height
  • Click in installation and fully demountable
  • Flexibility to transform interior of entire buildings with ease
  • Reduce material waste and on site labor costs
  • Internal blinds can be added
  • System allows the use of gypsum board without the mess of joint compound sanding dust

Technical Features

Acoustic performance with glass wall:45 Rw (STC = 45± dB)
Acoustic performance with solid wall:47 Rw (STC = 47± dB)
Acoustic performance on timber door:36 Rw (STC = 36± dB)
Acoustic performance on aluminum/glass door:37 Rw (STC = 37± dB)
Fire resistance:30/0 fire rated per British Standard BS476 Part 22 (20 minute U.S. equivalent rating)
Acceptable Substrate Variances:Up to 1" (25mm)
Standard RAL Colors:Jet Black, Silver Grey and White


View Full Specifications

Request for Information

To request more information from Avanti Systems USA, please complete the form below.

*Name:
*Email:
Company:
*Company type:
*Phone:
*Address:
*Request:
    (* = Mandatory field)



Categories:

08 32 00 - Sliding Glass Doors
08 32 13 - Sliding Aluminum-Framed Glass Doors
08 41 26 - All-Glass Entrances and Storefronts
08 42 26 - All-Glass Entrances
08 43 26 - All-Glass Storefronts
08 44 26 - Structural Glass Curtain Walls
08 81 00 - Glass Glazing
08 81 13 - Decorative Glass Glazing
10 22 00 - Partitions
  10 22 19 - Demountable Partitions
10 22 19.13 - Demountable Metal Partitions
10 22 19.43 - Demountable Composite Partitions
10 22 23 - Portable Partitions, Screens, and Panels
10 22 33 - Accordian Folding Partitions
10 22 36 - Coiling Partitions
10 22 39 - Folding Panel Partitions
10 22 43 - Sliding Partitions
