Fire Rated Double Glazed Glass Walls


  Other News
  Subscribe to newsletter
17 Jul 2016

Fire Rated Double Glazed systems let you have it all. The acoustics, aesthetics and privacy of our Solare Double Glazed system with the added benefit of being fire rated.

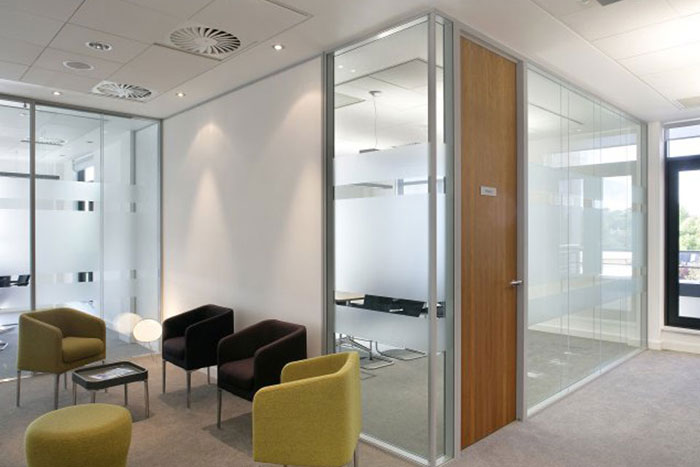

Fire Rated Double Glazed Glass Walls

Key Features

  • Single glazed door frame 30/0
  • Single glazed 30/30
  • Curved application available
  • Full height up to 15 feet installation
  • 2 part glazing sections
  • Polyester powder coated finish (ral color choices)
Technical Features

Head & Sill: Extruded 1”x 4” Aluminum 2 part glazing channel
Channel seal: Rubber flap seal
Fire resistance: BS476 Part 22 ( British standards)
Steel Framing Option: 60/60
Fire rating: 30/30 for glazed wall with Fire rated glazing
Acoustic rating: 44 Rw (db)
Vertical Wall channel: Extruded 1”x 4” Aluminum 2 part glazing channel
Vertical & Horizontal Glass joints: Crystal Clear PVC joint seals 7/8”
90 & 135 degree Corner joints: Crystal Clear PVC joint seals size varies on application
Slimline door frame: Extruded Aluminum 2 part door frame 2 ½” x 2 ¼”
Sound rating: BS EN ISO 717 (British standards)
Sound measurement: BS EN ISO 140(British standards)
Structural stability: BS5234 and BS6180 (British standards)

Technical Drawings

Drawing #: AV-FRDG01
Drawing #: AV-FRDG02

Glass Options
  • 5/8“ Fire Rated
  • 3/8“ Clear tempered
  • 7/16“ Clear laminated
  • 9/16" Laminated glass
  • 1/2” Clear tempered
  • Laminated LCD glazing available
  • Up to 3/4” Glazing is available
Door Integrations
  • Pivot Glass Doors
  • Premium Sliding glass doors
  • Timber doors
  • Double glazed (Acoustic) doors
  • Hinged glass doors
Hardware & Fittings
  • Aluminum and stainless steel
  • Custom assemblies upon request
  • Custom finishes
