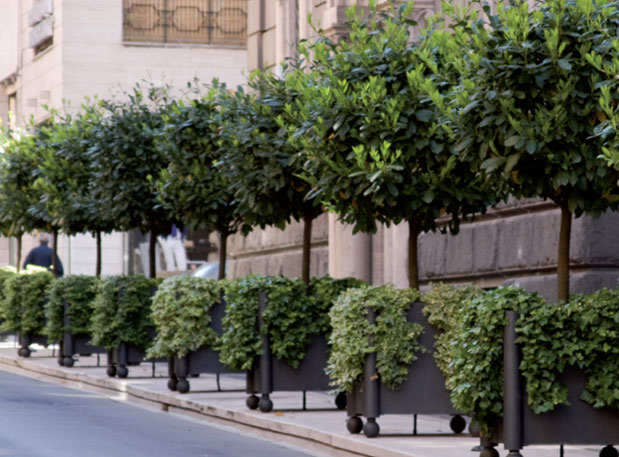

Portici/Arcade

Composed by:

• A Arcades
  4 columns FE360B galvanized steel cylindrical section (diameter 115 mm, height 870);
  enameled steel bathtub made of galvanized steel FE360B;

  • Portsmouth B
    4 columns FE360B galvanized steel cylindrical section (diameter 115 mm, height 770);
    enameled steel bathtub made of galvanized steel FE360B;
    4 ball (diameter mm 100) connected to the columns with interlocking system;

    • Portsmouth C
    4 columns FE360B galvanized steel cylindrical section (diameter 115 mm, height 890);
    enameled steel bathtub made of galvanized steel FE360B;
    4 balls made of cast iron EN GJL 200 UNI EN 1561, diameter 110 mm;
    4 bases made of cast iron EN GJL 200 UNI EN 1561 cone-shaped (diameter less than 150 mm, diameter greater than 140 mm, height 115).

    Finish:

    The cast iron parts subjected to sand, primer-component zinc immersion, spray a coat of the same zinc phosphate primer and finishing powder dried in an oven of gray cast iron (minimum thickness. 180 microns), minimum guarantee 2000 hours salt spray;
    steel parts undergo treatment of zinc plating and finishing powder dried in an oven of gray cast iron (minimum thickness. 180 microns).

    Technical parameters:

    Arcades, B mm C mm 1055x1055x1000h 1020x1020x870h Portici.
