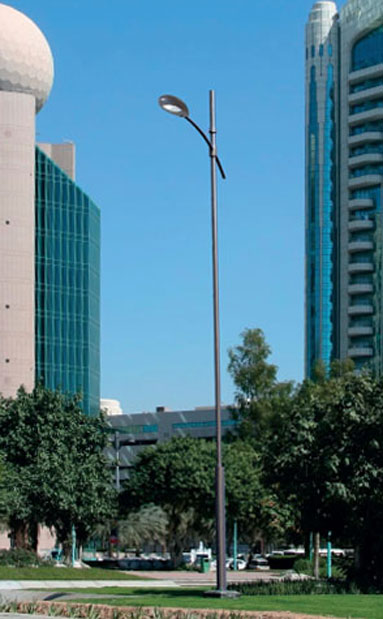

Viper
Composed by:
- upper body made entirely of cast aluminum UNI EN 1706, semi-elliptical in shape with arched moldings;
- lower structure made entirely of cast aluminum UNI EN 1706 contains the flat glass;
- system for attack on a pole to reach that top post is made Aluminium UNI EN 1706, for diam. 60 with the possibility of adjusting the inclination of the light the road surface, with references to scale internal 0 to ± 15 ° and lock with manual wrench;
- access to the optical and the electrical compartment by opening compass of the upper structure which is firmly attached optics to facilitate the maintenance phase. The system is unlocked quickly by opening a manual lever and snap is equipped with a safety system against accidental closing;
- Optical MID-LUX ® made in 99.9% pure aluminum super finish NATURAL polished;
- possibilities for optimizing performance in connection with the photometric field Application by the position control system of lamp posts on a slide with default or user-selectable continuously;
- cover lens made of frosted tempered flat glass high efficiency thickness 5 mm;
- double pole switch automatically activated when opening;
- gear tray with quick;
- porcelain type E27 or E40 with IMQ;
- Stainless steel screws;
- Class II isolation;
- degree of protection IP 65;
- CE mark (conforms to EU standards);
Finish:
Aluminum parts undergo a treatment for degreasing, phosphatingbottom of the zinc phosphate and powder dried in an oven-resistant UV, with a thickness ≥ 150 microns and minimum guarantee of 2,000 hours spent in salt spray.
