About High and Extra High Voltage

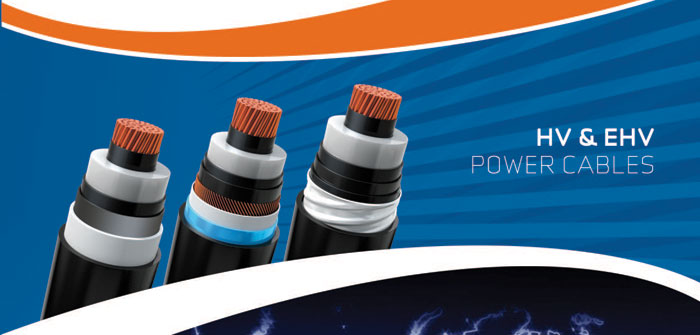

High and Extra High Voltage

Brand Name: Jeddah Cables Brand
Application: Used for electric power transmission at high voltage.
Size: Up to 2000 mm2
Description: Cu/XLPE/CUW/PE
Rated Voltage: 40/69 (72.5) KV, 63.5/110 (123) KV, 66/115 (123) KV, 76/132 (145) KV
Standard: IEC 60840
Conductor: Circular stranded compacted conductors up to 1000 mm2 and segmental conductors up to 2000 mm2 (Milliken conductors )
Insulation: XLPE Insulation
Metallic Sheath: copper wires , lead or Aluminum
Water tight: longitudinally and radially sealed
Sheath: Polyethylene sheath or ( PVC)
Packing: Non returnable wooden Drum as per Customer request

Brochures

Brochures
Preview Description Format Size Open
HV & EHV Power Cables Brochures
PDF 29.2 MB Open
