About Penetron Plus

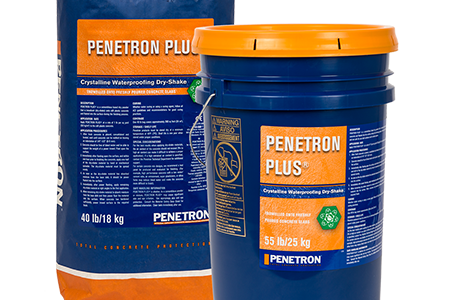

Penetron Plus

Penetron Plus is a dry-shake applied waterproofing treatment for concrete. It is used where localized protection is required or offers a more economical solution to using Penetron Admix, such as on very thick slabs.

Brochures | Specifications | CAD details

Brochures for Penetron Plus

Brochures for Penetron Plus
Preview Description Format Size Open
Penetron Plus PDS
PENETRON PLUS® is a unique integral crystalline chemical treatment for the waterproofing and protection of concrete. PENETRON PLUS® has been specially formulated for dry-shake applications on horizontal concrete surfaces where greater impact and abrasion resistance is required. Packaged in the form of a dry powder com- pound, PENETRON PLUS® consists of Portland cement, various active proprietary chemicals, and a synthetic aggre- gate hardener that has been crushed and graded to particle sizes suitable for concrete floors. PENETRON PLUS® becomes an integral part of the concrete surface thereby eliminating problems normally associated with coatings (e.g. scaling, dusting, flaking and delamination).The active chemicals react with the moisture in the fresh concrete causing a catalytic reaction, which generates a non-soluble crystalline formation within the pores and capillary tracts of the concrete.
PDF 74 kB Open
Penetron Brochure
THE CONCRETE SOLUTION.
PDF 2.8 MB Open

Specifications for Penetron Plus

Specifications for Penetron Plus
Description Format Size Download
Section 07162 - Crystalline Waterproofing
Section includes: A. The Cementitious capillary waterproofing materials specified herein shall be of the surface applied capillary action type, capable of providing the waterproofing qualities as stated under the guarantee, for all vertical and horizontal applications, at locations shown on the drawings or on the finish schedules; B. All work of the section shall comply with the conditions of the contract, the drawings and any special conditions forming a part of the contract.
PDF 126 kB Download
Section 07162 - Crystalline Waterproofing
Section includes: A. The Cementitious capillary waterproofing materials specified herein shall be of the surface applied capillary action type, capable of providing the waterproofing qualities as stated under the guarantee, for all vertical and horizontal applications, at locations shown on the drawings or on the finish schedules; B. All work of the section shall comply with the conditions of the contract, the drawings and any special conditions forming a part of the contract.
DOCX 154 kB Download

CAD details for Penetron Plus

CAD details for Penetron Plus
Preview Description Format Size View Download
CAD Details
CAD Details
ZIP/PDF 759 kB View Download
