Simple wiring in the control cabinet


  Other News
  Subscribe to newsletter
1 Mar 2014

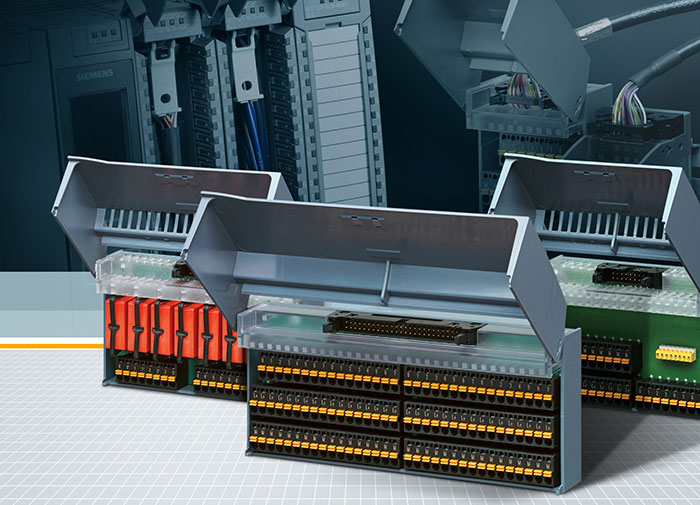

Siemens has broadened its Simatic Top Connect portfolio with a range of new modules and system components for fast and safe wiring of Simatic S7-1500 and Simatic ET 200MP. In addition to connection modules for eight channels (inputs or outputs), Siemens also offers, for the first time, compact versions for 32 channels that are available for connecting sensors and actuators via one or three wires.

Thereby only one cable needs to be connected between the connection module and the S7-1500 controller instead of four for the individual 8-channel modules. In addition, the new 32-channel connection module requires less space on the mounting rail than four modules with eight inputs and outputs each.

The new connection modules feature the compact design of the Simatic S7-1500, allowing space-saving installation in the control cabinet. With system cabling, users can save up to 80 percent time compared to conventional single wiring using terminal blocks.

Siemens has broadened its Simatic Top Connect portfolio with a range of new modules and system components for fast and safe wiring of Simatic S7-1500 and Simatic ET 200MP. With system cabling, users can save up to 80 percent time compared to conventional single wiring using terminal blocks.
Siemens has broadened its Simatic Top Connect portfolio with a range of new modules and system components for fast and safe wiring of Simatic S7-1500 and Simatic ET 200MP. With system cabling, users can save up to 80 percent time compared to conventional single wiring using terminal blocks.

The connection modules with eight channels are available in different versions, with disconnect terminals for manually cutting off specific plant sections, for example, or with relays and optocouplers for adapting the potential with which signals with AC voltages of 110 or 230 volts can also be connected to the controller. The 8-channel connection modules are fully compatible with the field-proven front connector modules for Simatic S7-300 and ET 200 M.

The appropriate system cabling can be selected in accordance with the respective input or output modules simply and quickly in the TIA Selection Tool.
