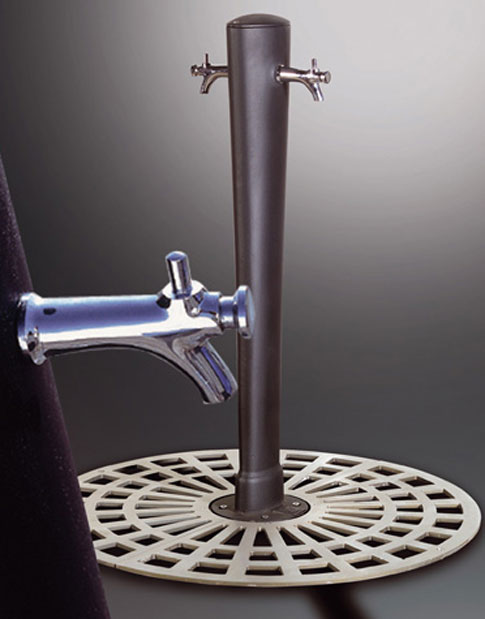

Alex

Composed by:

• barrel tapered elliptical cross section made of cast iron EN-GJL-200 according to UNI EN 1561 (size: 150x85 mm bottom section, top section of 200x110 mm, height 1100) and ground-based cylindrical geometry (diameter 210 mm , H 10) with 4 holes for tassellaggio;
• hat with a rounded head having an elliptical shape made of cast iron EN-GJL-200 (200x110 mm) removable by removing two screws hidden;
• grid of circular base made of cast iron
  EN-GJL-200 or stainless steel AISI 304 with radial slits, supplied in 3 pieces in the version 2 components in the semi-circular and circular version, to be assembled with a galvanized steel frame FE360B using stainless steel screws (diameter 981 mm , inner diameter mm 210);
• push button valve in chrome steel.

Blasting, primer-component zinc immersion, spray a coat of the same zinc phosphate primer, finishing powder dried in an oven of gray cast iron (minimum thickness. 180 microns), guaranteed minimum 2000 hours in salt spray and the parties Stainless steel satin undergo treatment.

Fixing:

The base is designed for tassellaggio ground.

Technical parameters:

fountain height 1100 mm, total weight 25 kg,
grill: diameter 981 mm;
weight 20 kg iron semicircle,
weight 15 kg steel semicircle.
