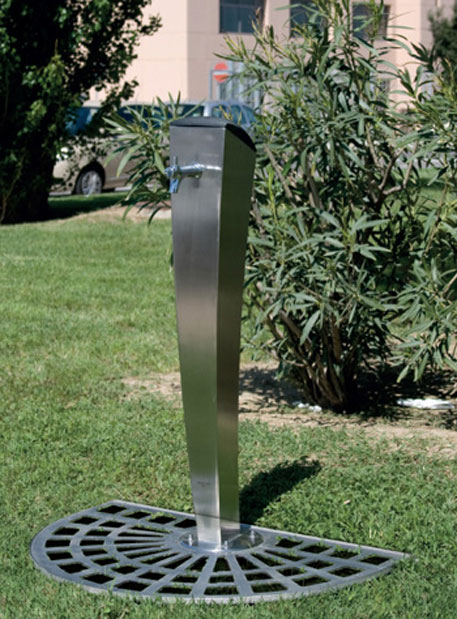

Gio

Composed by:

• conical drum section with a smooth surface and trapezoidal base made of cast iron EN-GJL-200 according to UNI EN 1561 or stainless steel AISI 304 (isosceles trapezium of origin: base 70 mm front, rear base 40 mm, height 100 mm, isosceles trapezium final front base 170 mm, the rear base 75 mm, height 220), maximum height 1100 mm.11 presents a curved stem for better water jutting into the grid, the floor support is provided by a base with cylindrical geometry (diameter 210 mm, height 10) with 4 holes for tassellaggio;
• hat made of cast iron EN-GJL-200 be removed by removing 2 screws hidden;
• grid of circular base made of cast iron EN-GJL-200 or stainless steel AISI 304 with radial slits, supplied in 3 pieces in the version 2 components in the semi-circular and circular version, to be assembled with a galvanized steel frame FE360B using stainless steel screws (diameter 981 mm, inner diameter mm 210);

Finish:

Blasting, primer-component zinc immersion, spray a coat of the same zinc phosphate primer, finishing powder dried in an oven of gray cast iron (minimum thickness. 180 microns), guaranteed minimum 2000 hours of salt spray and the parties receiving treatment in satin stainless steel.

Fixing:

The base is designed for tassellaggio ground.

Technical parameters:

fountain height 1100 mm, weight 25 kg;
grill: diameter 981 mm;
weight 20 kg iron semicircle;
weight 15 kg steel semicircle.
