About Intercept Entyre Panel System

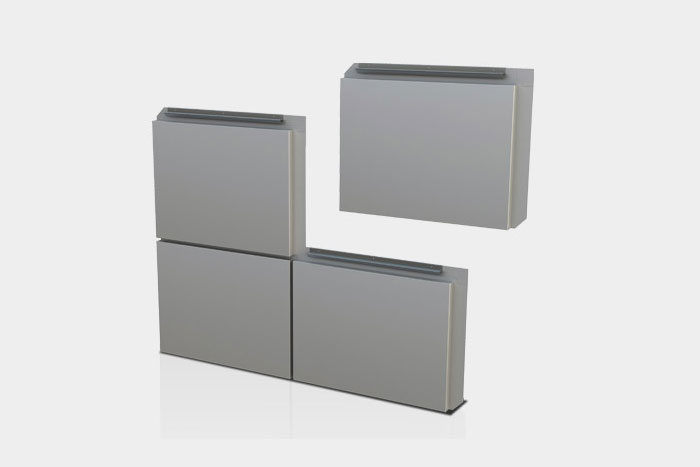

Intercept Entyre Panel System
The Intercept Entyre Modular Panel System offers innovation excellence with a continuous engagement extrusion and concealed fasteners that work in conjunction with sequentially installed modular panel units. Material options include: .060" aluminum, 1.5mm zinc and class I anodized aluminum.
Performance:
- Closed-joint back-ventilated Rainscreen Panel with ¾"(19mm) wide reveals betweeen panels
- Independent panel attachment
- Bottom up
- Vertical and/or horizontal orientation
- Variable running bond—vertically and horizontally
- ¾" [19mm] (Standard)
- Various horizontal and vertical reveal options available
- 1 3/8" [35 mm] (Standard)
- Panel depths are available from 1 3/8" to 4"
- Square or rectangular
- Multi-planar
- Sloped
- Additional features available upon request
- Panel Width Maximum : 141 ½" [3.6m], 29 ½" [.75m]
- Panel Height Maximum : 29 ½" [.75m], 141 ½" [3.6m]
- Panel Width Maximum : 32" [0.81m], 64" [1.63m]
- Panel Height Maximum : 64" [1.63m], 32" [0.81m]
