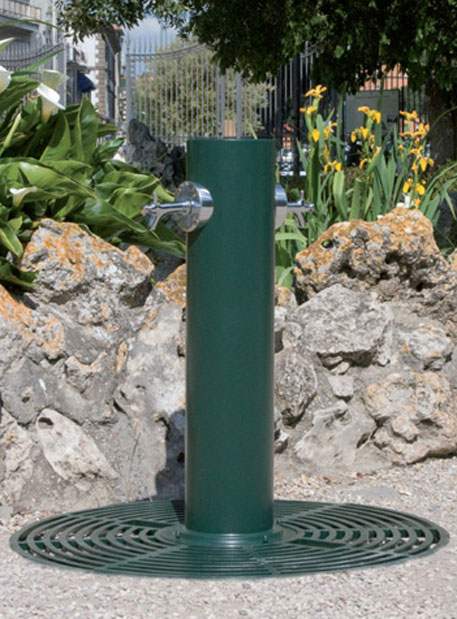

Egea

Composed by:

• barrel of circular cross section of galvanized steel, with flat top (diameter 220 mm, height 985) and base with a circular section (diameter 340 mm, height 40);
• 1 or 2 taps in chrome-type button;
• grid based on circular or semi-circular (diameter 1100 mm, thickness mm. 20), made of cast iron EN-GJL-200 according to UNI EN 1561, to be assembled with a galvanized steel frame FE360B.Upon request, the fountain can be equipped with 2 taps drip waters circular polyester (bath size: diameter 1100 mm, height 220).

The cast iron parts subjected to sand, primer-component zinc immersion, spray a coat of the same zinc phosphate primer, finishing powder dried in an oven of gray cast iron (minimum thickness. 180 microns), the minimum guarantee 2000 hours in salt spray;
steel parts undergo treatment of zinc plating and powder coating oven-dried gray cast iron (minimum thickness. 180 microns).

Fixing:

The base of the fountain has 4 holes for fastening to the steel frame (to be cemented in place).

Technical parameters:

total height 1030 mm, diameter 1100 mm grid,
total weight: kg 50 (version with 1 faucet) - 70 kg
(Version 2 taps).
