About Aquapresso

Aquapresso

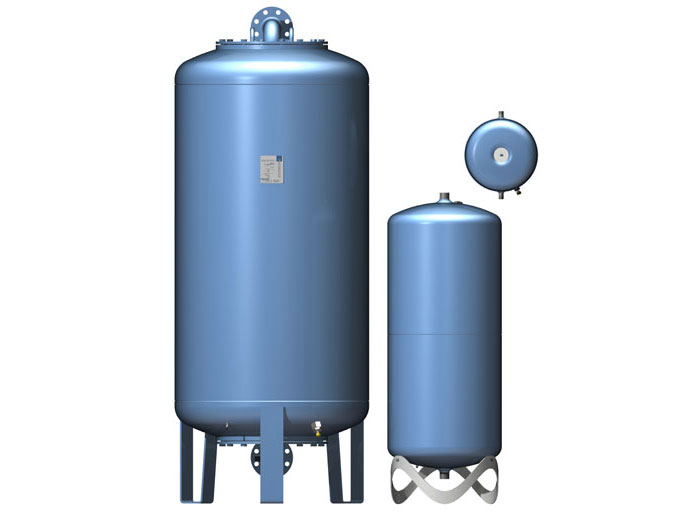

Expansion vessels with fixed gas cushion for drinking water systems. The airproof butyl bag, made from special butyl rubber and suitable for drinking water, is legendary. Together with the full flowthrough, the vessels offer a unique standard of hygiene.

PRODUCT INFORMATION

Pressure stabilisation for potable water
Expansion vessels with fixed gas cushion for drinking water systems. The airproof butyl bag, made from special butyl rubber and suitable for drinking water, is legendary. Together with the full flowthrough, the vessels offer a unique standard of hygiene.

Technical description

Application:
Drinking water heating systems, pressure-boosting systems, max. chloride content 125 mg/l (70 °C), 250 mg/l (45 °C).

Pressure:
Min. admissible pressure, PSmin: 0 bar
Max. admissible pressure, PS: see Articles
Limit value for the pressure maintenance (P0), factory setting: 4 bar

Temperature:
Max admissible temperature, TS: 120 °C
Min. admissible temperature, TSmin: -10 °C
Max admissible bag temperature, TB: 70 °C
Min. admissible bag temperature, TBmin: 5 °C

Material:
Steel. Colour beryllium.
All metallic parts in contact with water in stainless steel.

Function, Equipment, Features:
Airproof butyl bag according to EN 13831 and Pneumatex internal standard.
Airproof butyl bag according to EN 13831 and Pneumatex internal standard exchangeable (AG, AGF).
Hydrowatch for tightness control of the bag (ADF, AUF, AGF).
Flowfresh full flow-through (ADF, AUF, AGF).
Endoscopic inspection opening for internal inspections (AU, AUF), two flange openings for internal inspections (AG, AGF).
Sinus ring for upright assembly and easy transport (AU, AUF). Feet for upright assembly (AG, AGF). Wall bracket for easy assembly (AD, ADF).

Transportation and storing:
In frostless, dry places.

Approvals:
Drinking water inspection according to the rules of SVGW, ACS, PZH.
CE design-tested according to PED/DEP 97/23/EC.

Brochures for Aquapresso

Brochures for Aquapresso
Preview Description Format Size Open
Aquapresso
PDF 1.0 MB Open
