TA-SCOPE

A tough, effective balancing instrument for measuring and documenting of differential pressure, flow, temperature and power in hydronic systems. Robust, accurate and easy-to-use, TA-SCOPE delivers quicker, more cost-efficient balancing and enables rapid troubleshooting. TA-SCOPE links effortlessly to the TA-Select PC software gaining the maximum benefit from recorded data and enabling professional report writing and automatic software upgrades.

PRODUCT INFORMATION

Balancing instrument
TA-SCOPE is a tough, effective balancing instrument for measuring and documenting of differential pressure, flow, temperature and power in hydronic systems. Robust, accurate and easy-to-use, TA-SCOPE delivers quicker, more cost-efficient balancing and enables rapid troubleshooting. TA-SCOPE links effortlessly to the TA-Select PC software gaining the maximum benefit from recorded data and enabling professional report writing and automatic software upgrades.

Technical description
TA-SCOPE is a balancing instrument for measuring and documenting of differential pressure (Δp), flow, temperature and power in hydronic systems.

TA-SCOPE consists of two main components:

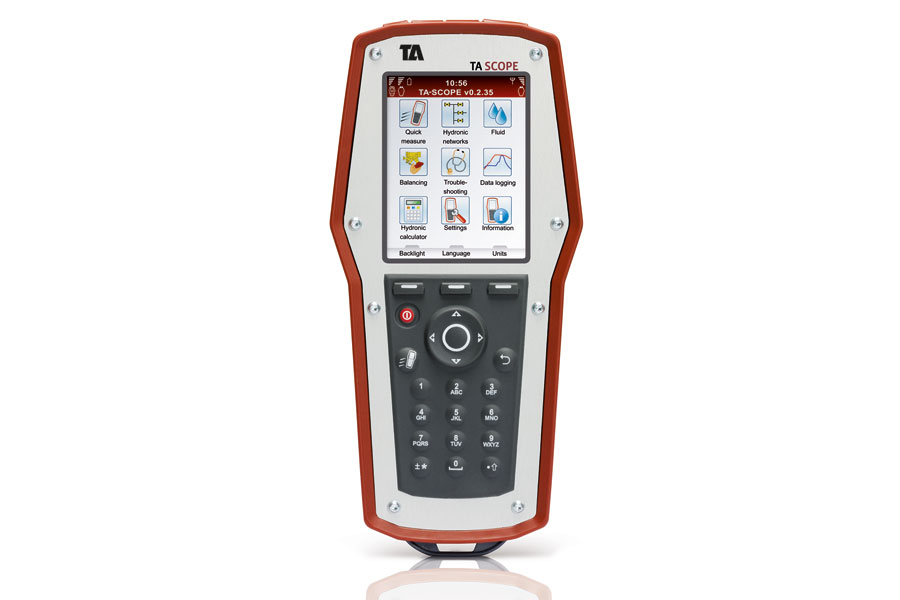

Handheld unit – computer-based unit programmed with the TA valve characteristics. Straightforward functions with easy-to-follow instructions on the colour display.
Differential Pressure Sensor unit – the Dp Sensor communicates wirelessly with the Handheld unit and has LED indicators for indicating communication status and battery capacity. The units can optionally be connected via cable.
TA-SCOPE automatically demands calibration when needed. The design of the sensor unit and a short flow-through during calibration eliminate measurement errors caused by insufficient venting of the measuring device.

Measurement range:
Total pressure: max. 2 500 kPa
Differential pressure:
TA-SCOPE 0 - 200 kPa
TA-SCOPE HP 0 - 1 000 kPa
Recommended pressure range during flow measurements:
TA-SCOPE 3 - 200 kPa
TA-SCOPE HP 3 - 1 000 kPa

Temperature liquid medium measurement:
-20°C – 120°C

Measurement deviation:
Differential pressure:
TA-SCOPE 0.1 kPa or 1% of reading, whichever is the highest
TA-SCOPE HP 0.2 kPa or 1% of reading, whichever is the highest
Flow: as for differential pressure + valve deviation
Temperature: <0.2°C

Battery capacity, operating and charge times:
Handheld unit:
- battery capacity: 4 400 mAh
- operating time (with backlight on): >25 h
- charge time to full capacity: 6-7 h
Dp Sensor unit:
- battery capacity: 1 100 mAh
- operating time (continuous measurements): >25 h
- charge time to full capacity: 1,5 h

Logging time (in sleep mode): >100 days

Enclosure class:
Handheld unit (in wireless mode): IP 64
Dp sensor unit (in wireless mode): IP 64
Safety pressure and temperature probe: IP 65
Digital temperature sensor: IP 65

Ambient temperature for the instrument:
During operation and charging: 0-40°C
During storage*: -20-60°C

*) Do not leave water in the sensor when there is a risk of freezing.

Humidity:
Ambient humidity: max. 90%RH

Charger:
Output voltage: 5,2 V DC (minimum 5,0 V, maximum 5,3 V)
Output current: Minimum 1 A.
Isolation: Class II.
Certification: IEC (868 MHz) and/or UL, CSA (915 MHz).
Complying with the LPS (Low Power Source) regulation.
