TBV

The TBV terminal valve delivers accurate hydronic balancing.

PRODUCT INFORMATION

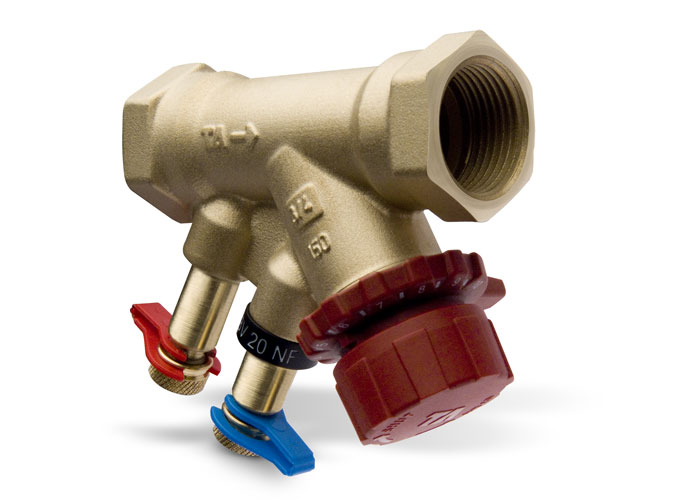

Terminal valve
The TBV terminal valve delivers accurate hydronic balancing.

Technical description
Applications:
Heating and cooling systems.

Functions:
Balancing
Pre-setting
Measuring
Shut-off

Dimensions:
DN 15-20

Pressure class:
PN 16

Temperature:
Max. working temperature: 120°C
Min. working temperature: -20°C

Material:
Valve body: AMETAL®
Seat seal: Valve plug of EPDM
Spindle seal: EPDM O-ring
Valve insert: PPS (polyphenylsulphide)
Return spring: Stainless steel
Spindle: Nedox® coated AMETAL®
Handwheel: Polyamide
Nipple: AMETAL®

AMETAL® is the dezincification resistant alloy of TA.

Marking:
Body: TA, PN 16/150, DN, inch size and flow direction arrow.
Identification ring on measuring point.
