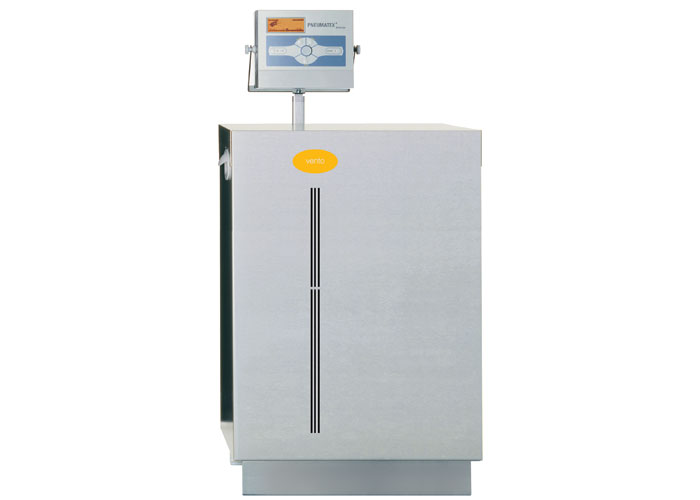

Vento

Pressure drop degasser according to the vacusplit principle. Through the atomizing process of the water in a special vacuum vessel, the gases are separated completely from the water. A water makeup system may be integrated as an option. It is used in heating, solar and cooling water systems to facilitate central venting of the system and minimise corrosion.

PRODUCT INFORMATION

Vacuum degassing system
Pressure drop degasser according to the vacusplit principle. Through the atomizing process of the water in a special vacuum vessel, the gases are separated completely from the water. A water makeup system may be integrated as an option. It is used in heating, solar and cooling water systems to facilitate central venting of the system and minimise corrosion.

Technical description

Applications:
Heating, solar and chilled water systems.
For systems according to EN 12828, EN 12976, ENV 12977, EN 12952, EN 12953.

Media:
Non-aggressive and non-toxic system media.
Addition of antifreeze agent up to 50%.

Pressure:
Min. admissible pressure, PSmin: -1 bar
Max. admissible pressure, PS: see Articles

Temperature:
Max. admissible temperature, TS: see Articles
Min. admissible temperature, TSmin: 0 °C
Max. admissible ambient temperature, TU: 40 °C
Min. admissible ambient temperature, TUmin: 0°C
Max. admissible temperature for water make-up, TW: 30 °C (VP)

Supply voltage:
230 V/50 Hz
3 x 400 V/50 Hz (VP...PEC)

Enclosure class:
IP 54 according to EN 60529

Sound pressure level:
55 dB(A)
74 dB(A) (VP .2 EC)
51 dB(A) (VP 13.1 PEC)
53 dB(A) (VP 19.1 PEC)

Material:
In essence: steel, brass and bronze

Function, Equipment, Features:
BrainCube control. Self-optimising with memory function.
Vacusplit spray-type degassing of the system and make-up water in a vacuum vessel.
Gas-content dependent eco-automatic operation (V...E(C), VP...E(C), VP...PEC).
Eco-interval operation for interval degassing and continuous degassing.
Fillsafe water make-up monitoring. With possibility to control water make-up through a Pleno P (V). With contact water meter and a break tank type AB according to EN 1717, SVGW-tested (VP, VP...PEC).
Cooling version insulated and vapor sealed V...C, V...EC, VP...EC, VP...PEC).
Isolating valves to the system.
Floor standing.
High quality metal cover with handles.

Transportation and storing:
In frostless, dry places.

Approvals:
CE-tested according to the requirements of the European Directives PED/DEP 97/23/EC, 2004/108/EC, 2006/95/EC.
