About Clearspan Systems

Clearspan Systems

Marrying the benefits of the lightweight Kalwall composite panel technology with the low maintenance, corrosion and moisture resistant aluminum box beams, we can offer monumental clearspan skylights and structures with spans in excess of 100 feet. The leaders in large scale daylighting systems, Structures Unlimited Inc., a strategic partner of Kalwall, offers total design control, fabrication, delivery and complete installation with single source responsibility. When you need it done right, on time, and in budget, we have your solution. No more need for separate steel fabricators, glaziers and painters – these skylight systems are pre-fabricated, pre-finished and ready for quick, curb up installation. Installations completed in weeks, not months, due to component standardizations and CAD technology.

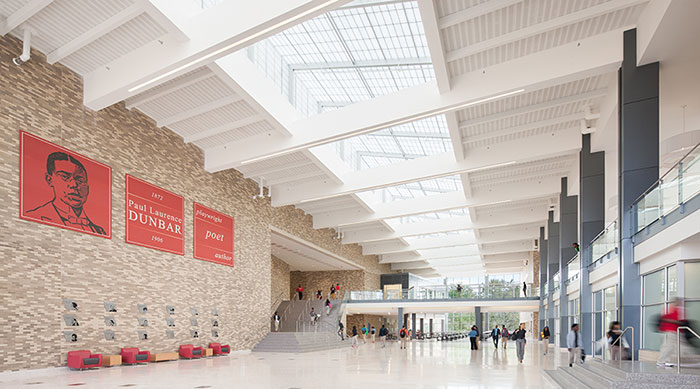

Dunbar High School | Washington, DC | Perkins Eastman + Moody Nolan | Photograph: Joseph Romeo

Brochures | Specifications | CAD details

Brochures for Clearspan Systems

Brochures for Clearspan Systems
Preview Description Format Size Open
Product Brochures
Daylight Modeling Services
Daylighting is the practice of using controlled natural light to illuminate a space. It is part science and part art.
Search our project portfolio by a variety of options listed below or try key words if you prefer.

Specifications for Clearspan Systems

Specifications for Clearspan Systems
Description Format Size Download

CAD details for Clearspan Systems

CAD details for Clearspan Systems
Preview Description Format Size View Download
CAD Details
BIM Families
BIM/Revit 2012 Family files may be downloaded by clicking the .zip for the associated product description. Revit files will download as .zip archives.
