About Schreder Neos 4





Schreder Neos 4

Schreder Neos 4

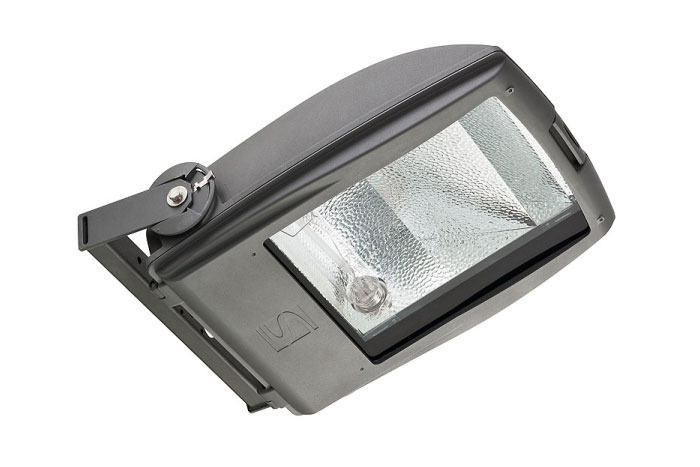

The Neos 4 is a high-tightness floodlight (IP 66) for 600W and 1000W lamps, ideal for lighting large areas such as car parks, sports fields, interchanges, ports etc. The floodlight is composed of a two-piece housing made of painted die-cast aluminium alloy. The housing contains a reflector made of polished and anodized aluminium and a removable control gear plate.

The tempered glass protector is sealed onto the cover. Mounting by means of a fork enables the inclination to be adjusted precisely on-site.

Finish: polyester powder coating
Colour: AKZO grey 900, sand-blasted
Other colours on request

Characteristics: FLOODLIGHT
Tightness level: IP 66 (*)
Impact resistance (glass): IK 08 (**)

Aerodynamic resistance (CxS):

  • Front: 0,065 sqm.
  • Side: 0,064 sqm.
  • Inclined at 60°: 0,254 sqm.

    Nominal voltage: 230 V – 50 Hz
    Electrical class: I or II (*)
    Weight (empty): 18 kg

    (*) according to standard IEC - EN 60598
    (**) according to standard IEC - EN 62262

    Advantages

    • Numerous light distribution options
    • Symmetrical and asymmetrical lighting
    • IP 66 tightness level
    • Aluminium and glass

    Options

    • Louvres
    • Protection grid
    • Anti-tamper closure system

    • Brochures for Schreder Neos 4

    Brochures for Schreder Neos 4
    Preview Description Format Size Open
    Schreder Neos 4 Brochure
         		PDF 2.7 MB Open
