Vibration tester provides on-the-spot diagnosis of mechanical problems

Other News   Subscribe to newsletter

20 Oct 2013

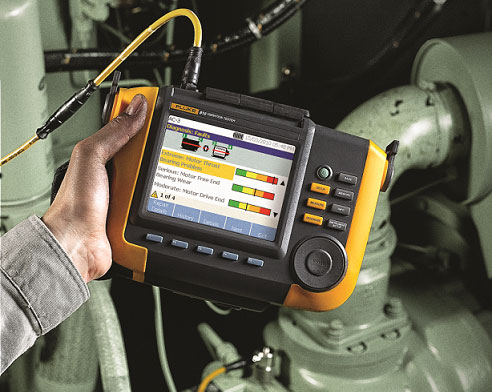

Fluke Corporation, the global leader in portable electronic test and measurement technology introduces the unique Fluke 810 Vibration Tester, which is the most advanced troubleshooting instrument available for vibration. The Fluke 810 enables maintenance teams to rapidly collect data and diagnose and solve mechanical problems with an affordable, easy to use tool.

The handheld Fluke 810 is designed and programmed to diagnose the most common mechanical problems of unbalance, looseness, misalignment and bearing failures in a wide variety of mechanical equipment, including motors, fans, blowers, belts and chain drives, gearboxes, couplings, pumps, compressors, closed coupled machines and spindles. When it detects a fault, the Fluke 810 identifies the problem and rates its severity on a four-level scale to help the maintenance professional prioritize maintenance tasks. It also recommends repairs. Context-sensitive on-board help menus provide new users with real-time guidance and tips.

Steve Hood, Fluke General Manager, Middle East, Africa and Turkey, explaining that the Fluke 810 is a new approach to machine testing, said that vibration analyzers used in condition-based monitoring or predictive maintenance programs rely upon the previously established baseline conditions to evaluate machine condition and estimate remaining operating life. “In contrast, the Fluke 810 is a troubleshooting tool that analyzes current machinery condition and identifies faults by comparing vibration data to an extensive set of rules developed over years of field experience”. Steve Hood also added, “This means that every measurement taken is compared to a “like new” machine”.

Typical vibration analyzers and software are intended for monitoring machine condition over the longer term, but they require special training and investment that may not be possible in many companies. The Fluke 810 is designed specifically for maintenance professionals who need to troubleshoot mechanical problems and quickly understand the root cause of equipment condition.

Mechanical diagnosis with the Fluke 810 begins when the user places the Fluke triaxial TEDS accelerometer on the machine under test. The accelerometer has a magnetic mount and can also be installed by attaching a mounting pad using adhesive. A quick-disconnect cable connects the accelerometer to the Fluke 810 tester. As the machine under test operates, the accelerometer detects its vibration along three planes of movement and transmits that information to the Fluke 810. Using a set of advanced algorithms, the 810 Vibration Tester then provides a plain-text diagnosis of the machine with a recommended solution.

Viewer Application Software
The Fluke 810 Vibration Tester includes Viewer PC software, compatible with Windows XP and Vista, to expand its data storage and tracking capability. With Viewer the user can:

• Create machine setups at the computer keyboard and transfer the data to the 810 Vibration Tester.
• Generate diagnostic reports in a PDF file format.
• View vibration spectra in greater detail.
• Import and store JPEG images and Fluke .IS2 thermal images for a more complete view of a machine’s condition.

The Fluke 810 Vibration Tester comes with embedded diagnostic technology, triaxial TEDS accelerometer, accelerometer magnet mount, accelerometer mounting pad kit with adhesive, accelerometer quick-disconnect cable, laser tachometer and storage pouch, smart battery pack with cable and adapters, shoulder strap, adjustable hand strap, Viewer PC application software, mini-USB to USB cable, Getting Started Guide, illustrated Quick Reference Guide, User Manual CD-ROM and a hard carrying case.
