World’s first building made from hardwood cross-laminated tulipwood opens in Oldham

  Other News
  Subscribe to newsletter
9 Jul 2017

Maggie’s Oldham, the world’s first building made from hardwood crosslaminated timber (CLT), was opened recently in the UK. Designed by dRMM Architects and supported by the American Hardwood Export Council, the opening is a pivotal moment for modern architecture and construction. Maggie’s is a charity that provides practical and emotional support to people living with cancer. Built on the grounds of specialist NHS cancer hospitals, Maggie’s Centres are warm and welcoming places with qualified professionals on hand to offer a programme of support shown to improve physical and emotional wellbeing.

World’s first building made from hardwood cross-laminated tulipwood opens in Oldham

dRMM chose tulipwood for the design of Maggie’s Oldham for the positive influence wood has on people and for the beauty, strength and warmth inherent to American tulipwood. Wood is known to significantly reduce blood pressure, heart rates and recovery times; it has more health and wellbeing benefits than any other building material, according to Wood Housing Humanity Report 2015. According to dRMM, this pioneering piece of permanent architecture has been constructed from more than 20 panels of five layer crosslaminated American tulipwood, ranging in size from 0.5m - 12m long.

American tulipwood CLT was pioneered in 2013 by dRMM, AHEC and Arup for its unparalleled strength and lightness, speed of construction and sustainability. American tulipwood is approximately 70 percent stronger in bending than a typical CLT grade softwood. The structural CLT panels for Maggie’s Oldham were developed by CLT specialists - Züblin Timber. The first public experiment with this building material was The Endless Stair, created during the London Design Festival 2013. Arup’s engineering calculations show the structure could have supported 100 people at any one time.

Tulipwood CLT is one of the most sustainable timber species because of how fast it replenishes, through natural growth alone. Maggie’s Oldham contains 27.6m3 of American
tulipwood and 1.1m3 of American ash, equivalent to around 55.22m3 and 2.1m3 respectively of sawn wood before processing, which in terms comes from around 115.7m3 of logs – and
all these logs will be replaced in just 120 seconds (108 seconds for the tulipwood and 12 seconds for the ash).

Co-founder of dRMM, Prof. Alex de Rijke’s experiments with engineered timber have progressed during 30 years in practice and academe. The studios building and furniture projects have pushed the structural, environmental, and aesthetic properties of engineered timber, from plywood to engineered softwood, and now to the collaborative invention of hardwood CLT.

“From the Oldham project inception we knew it was the right material for Maggie’s, not only structurally and visually, but conceptually. An elevated, open plan, all-timber and glass building - with trees growing through it, and every detail considered from the perspective of use, health, and delight - was always going to be special,” said de Rijke. “Maggie’s Oldham has a built-in, very visible holistic design message that supports the central aims of the design – to uplift and offer hope to people living with cancer. The applications for sustainable grown hardwood, particularly fast growing tulipwood CLT is endless. The environmental, structural and visual qualities are demonstrated explicitly at dRMM’s Maggie’s; a manifesto for wood as the natural choice for contemporary architecture of physical and psychological well-being.”

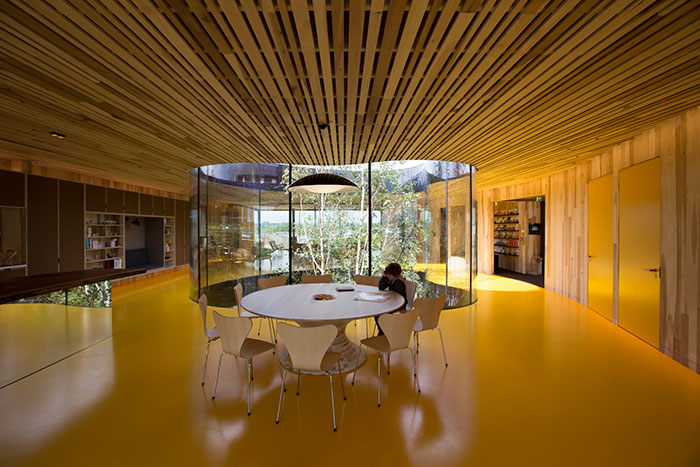

The curved glass feature in the centre aims to bring nature inside the building. In addition, the main kitchen table around which Centre visitors are encouraged to sit, is a design by Barnby Day that was commissioned by Alex de Rijke and AHEC for the Wish List project for London Design Festival 2014. It is built by Benchmark Furniture from recycled tulipwood CLT. The top was left over from the Wish List and the base is made from off-cuts of CLT that came from the windows and doors of Maggie’s Oldham.

According to AHEC, Maggie’s Oldham structure proves that hardwoods have a role to play in the timber construction revolution. Previous AHEC projects – Timber Wave, Out of the Woods, Endless Stair and The Wish List – have all been significant projects but this centre proves that a building made of Tulipwood CLT is possible, and that it can be done on a strict budget and in record time. Like all timbers, tulipwood is a carbon store. Calculations show that, at the point at which the tulipwood reached the factory in Germany where the CLT was fabricated – after felling, sawing, drying and transport – it was still storing far more CO2 than had been generated through its processing and transport.

“For AHEC, Maggie’s Oldham is one of the most important developments in a decade of research and development into structural timber innovation and one that could broaden the use of CLT in the construction industry. The creation of this product and significant use of hardwood will transform the way architects and engineers approach timber construction,” said Roderick Wiles, AHEC Director for Africa, Middle East, South Asia and Oceania. “Tulipwood is particularly useful in structural applications given its very high strength to weight ratio. In fact, American tulipwood CLT is around three times stronger and stiffer in ‘rolling shear’ than its softwood equivalent and its potential in wood construction is extremely promising.”

Tulipwood is the fourth most abundant timber in U.S. hardwood forests, representing 7 percent of the total growth, only exceeded by American red oak (18 percent), white oak (15 percent) and soft maple (11 percent). It grows in all 33 states that are home to U.S. hardwoods (generally on the eastern side of the country) and is most abundant in North Carolina, Virginia and West Virginia. And it is under-exploited. Not only is the amount of growth greater than the level of harvesting in every state, but in all of them the harvest level is less than half of the growth level. This is partly because tulipwood is a fast-growing timber and regenerates, not only by natural reseeding, but also by re-growing from the stumps of harvested trees.
