About EvoDrive Automatic linear drive for interior sliding doors

EvoDrive Automatic linear drive for interior sliding doors

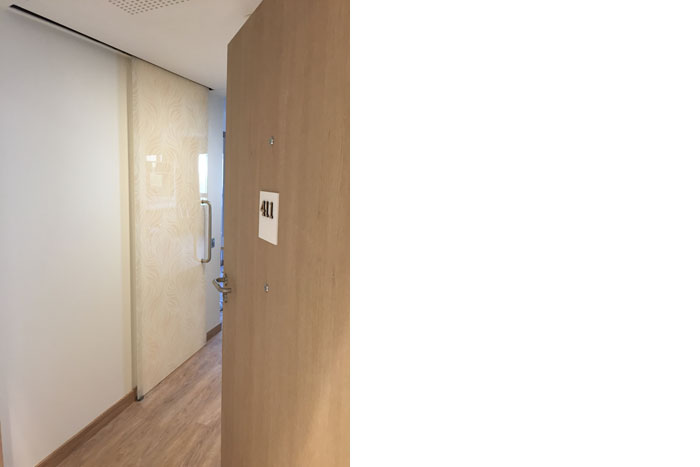

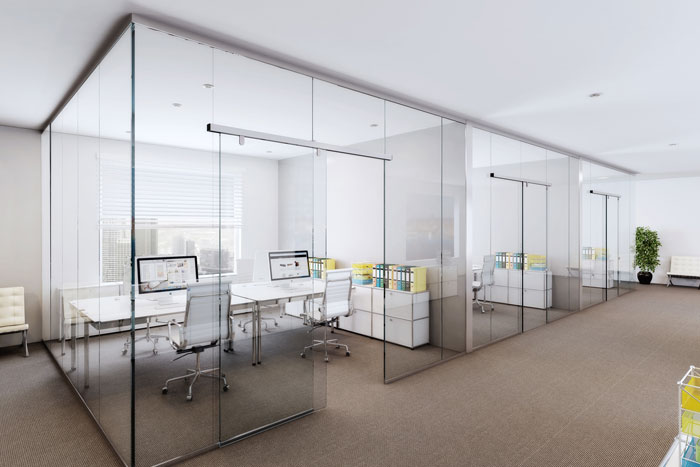

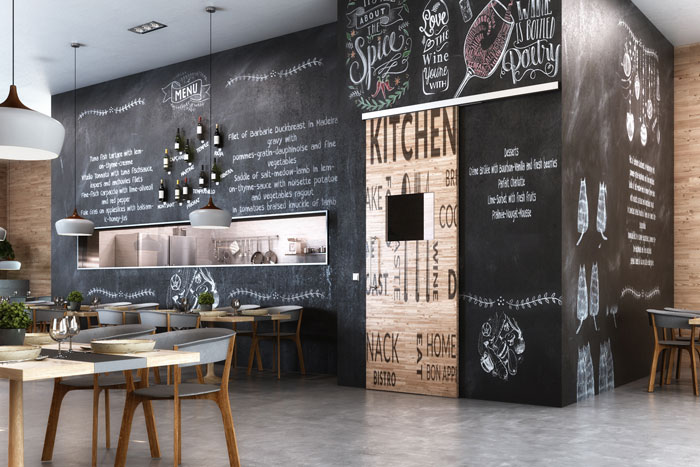

Compact sliding door operator (just 60mm high x 65mm deep) with magnetic linear motor technology for internal automatic sliding doors. It combines the small size and discrete look of a manual track with the performance of a conventional automatic door operator. With wireless technology to communicate the main board with the motor to avoid the use of cables, wires and other mechanical elements for a simple installation and reliable and silent performance. The EvoDrive operator is the ideal solution for the automatic of internal doors in hotels, offices, hospitals, private villas, etc.

Main Technical Features

  • Compact aluminium housing: only 60×65/70 mm
  • Minimum clear opening: 600mm Guide length: 1250mm
  • Maximum clear opening: 1400mm Guide length: 2850mm
  • Leaf weight from 1 to 80Kg
  • Adjustable opening speed: 200 to 800 mm/s
  • Acceleration and braking curves: 200 to 800mm/s2
  • Low operating noise: <50dB
  • Power supply: 230 AC 50-60Hz (110V on demand)
  • Power consumption:
  • In operation: 80W
  • Peaks (0,2 sec): 150W
  • Stand-by: 5w

Motor Specifications

  • Electric three phase AC motor type LSMPM – Linear Synchronous Motor with Permanent Magnets
  • Tension: 24V DC (standard); 36 – 48V DC (on demand)
  • Peak current: 5A
  • Operating current: 3A
  • Motor driver
  • Magnetic position feedback with 3 hall cells.
  • Motion control by means of a driver with field oriented control (FOC)
  • Wireless communication via Bluetooth

Electronic Specifications

  • Operated by Microcontroller (MCU)
  • Wireless communication via Bluetooth
  • 4 operating modes
    • Automatic
    • Open
    • Close or Close/Lock (with optional auto lock)
    • Exit Only / Access control
  • Adjustable parameters
    • Push & go
    • Opening direction: right or left
    • “Low energy” or normal mode
    • Opening speed
    • Closing force
    • Reopening sensitivity
    • Hold open time
  • Conform to European norms and directives in force
    • Directive 2006/42/EC on Machinery
    • Directive 2004/108/EC on “Electromagnetic Compatibility (EMC)”
    • Directive 2004/95/EC on “Safety of low voltaje electrical appliances”
    • Norma EN16005: “Power operated pedestrian doorsets – Safety in use”

Brochures | CAD details

Brochures for EvoDrive Automatic linear drive for interior sliding doors

Brochures for EvoDrive Automatic linear drive for interior sliding doors
Preview Description Format Size Open
EvoDrive Brochure
PDF 1.1 MB Open

CAD details for EvoDrive Automatic linear drive for interior sliding doors

CAD details for EvoDrive Automatic linear drive for interior sliding doors
Preview Description Format Size View Download
83431001 EvoDrive operator - Single slide with timber leaf
PDF 121 kB   Download
83431005 EvoDrive operator - Single slide with glass leaf and clamps
PDF 122 kB   Download
83431006 EvoDrive operator - Single slide with FULL glass leaf
PDF 122 kB   Download
83431007 EvoDrive operator - Single slide with TWINS glass leaf adaptor
PDF 126 kB   Download
