About Bullet resistant transaction windows

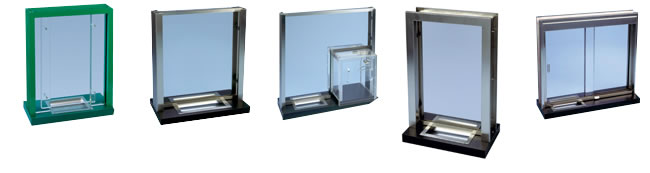

Bullet resistant transaction windows

Baffle Window
Natural Voice Baffle Barriers using acrylic or poly carbonate glazing permits polished exposed edges and less offensive metal trim. Both the baffle or staggered configuration gives unobstructed views and maximum "Natural Voice" communication. All types of framing systems can be used - extruded fixed jamb aluminum is shown - or framing can be eliminated with the glazing mounted in simple channels.

Frames are available in custom colors, clear anodized or stainless steel. Glazing can be expanded to provide a protective barrier for multiple clerk positions, such as a Teller's Line. The most popular protection levels are UL 1 and 3.

Available as pre-assembled single units or multiple positions, completely prefabricated and knocked down for easy erection on site.

UL listed "C" channel stainless steel frame with "Natural Voice"
Armortex® manufactures Bullet Resistant Transaction Windows with UL Listed stainless steel frames for interior wall applications. Glazing material is held in place within the frame with neoprene spacers which provide a natural voice communication system. These units include a dip tray and a high pressure laminated plastic parcel shelf (stainless steel optional).Armortex offers these transaction windows in various levels of protection.

Transaction windows are shipped preassembled in single or multiple lights, ready to mount into a finished opening.

Armortex® transaction window with package receiver
This unit is a combination of the Armortex® Transaction Window and our Transparent Package Receiver.

Armortex® manufactures Bullet Resistant Transaction Windows with UL Listed stainless steel frames for interior wall applications. Glazing material is held in place within the frame with neoprene spacers which provide a "Natural Voice" communication system. These units include a dip tray and high pressure laminated plastic parcel shelf. (stainless steel optional) Armortex® Bullet Resistant Package Receivers offer complete visibility of all transactions and are available in protection levels 1 and 3.

Features include interlocking doors which prevents the simultaneous opening of both, automatic door closer on the exterior door, and an optional security latch to prevent the forced entry through the inside door during "non use" periods. These units are shipped preassembled, ready to mount into a finished opening. Available in levels 1 and 3. Interior applications only.

3-Sided hollow metal frame with "Natural Voice"
Armortex® manufactures this unit in 16 ga. prime painted steel or optional stainless steel. This hollow metal natural voice frame has a 16 ga. stainless steel dip tray mounted in a high pressure laminate shelf. Designed for interior wall applications and available in all protection levels and glazing materials. All sizes available. The shelf can be omitted with the dip tray shipped loose if desired.

3-Sided Hollow metal sliding window
Armortex® manufactures this unit in a 16 ga. stainless steel, hollow metal frame with or without a 16 ga. stainless steel dip tray mounted in a high pressure laminate clad shelf (stainless steel optional). The shelf can be eliminated if a 4-sided frame is desired. Available in all sliding configurations. Glazing is available in levels 1 and 3. Designed for interior wall applications and allows "Natural Voice" communication.
