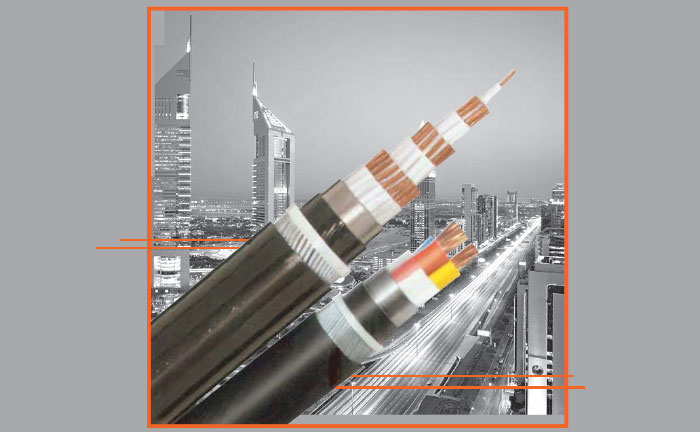

Ducab Lead Sheathed Power Control and Auxiliary Cables

TYPE
Lead Sheathed Power Control and Auxiliary Cables

USE
Underground cables in Oil, Gas and Petrochemical industries

TYPE TESTED AND CERTIFIED BY
Lloyd’s Register and ESMA.

MANUFACTURED TO
BS 5467, IEC 60502-1 and EEMUA-133 specifications for the Oil, Gas & Petrochemical sector

RANGE
Single Core Cables, Copper / Aluminium, armoured/unarmoured Lead Sheathed power and control cables 600/1000 from 16mm² up to and including 1000mm²

Two Core Cables, Copper / Aluminium, armoured/unarmoured Lead Sheathed power and control cables 600/1000 up to 400mm²

Three Core Cables, Copper / Aluminium, armoured/unarmoured Lead Sheathed power and control cables 600/1000 up to 400mm²

Four Core Cables, Copper / Aluminium, armoured/unarmoured Lead Sheathed power and control cables 600/1000 up to 400mm²

Copper / Aluminium, Armoured / unarmoured auxiliary cables in 600/1000 V grade

BENEFIT
The lead sheath provided in these cables performs the mechanical function of acting as a barrier to entry of Hydrocarbons.

In addition, Lead Sheath of Cables can also be engaged to perform the electrical function of sharing the earth fault current with the armour.

Lead Sheath also protects cables against radial moisture ingress.

NOTE
Upon request, Lead Sheathed Power Control and Auxiliary Cables can be customized to your requirements
