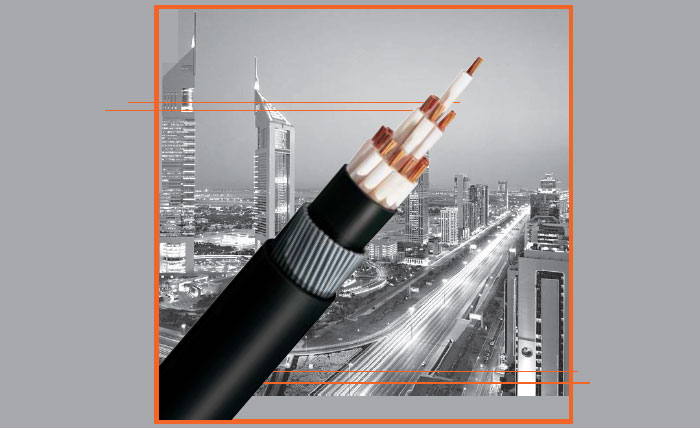

Ducab Low Voltage Control and Auxiliary Cables

TYPE
Control and auxiliary cables

USE
Operates small LV power supply to single or three phase A.C. loads, control circuits, processing machines, conveyors, production lines etc

TYPE TESTED AND CERTIFIED BY
BASEC, ESMA and Lloyd’s Register

MANUFACTURED TO
BS 5467 & IEC 60502-1 specifications and are rated 600/1000V.

RANGE
Control Cable with Copper conductor-XLPE/PVC insulated covering sizes 1.5 mm² up to 10 mm² in 2, 3 and 4 cores

Auxiliary Cables with Copper Conductor XLPE/PVC insulated covering sizes 1.5 mm², 2.5mm², 4mm² from 5 cores to 61 cores

BENEFIT
Control and auxiliary cables both armoured and unarmoured can be offered with a common/overall screen or shield. The screening material is plain annealed copper tape/copper laminate/aluminium laminate as specified

NOTE
These cables are used for fixed installation where bending maybe required with medium mechanical stresses. We can still offer the cables to 1997 version of BS 6346 if required.
