About Ellipse

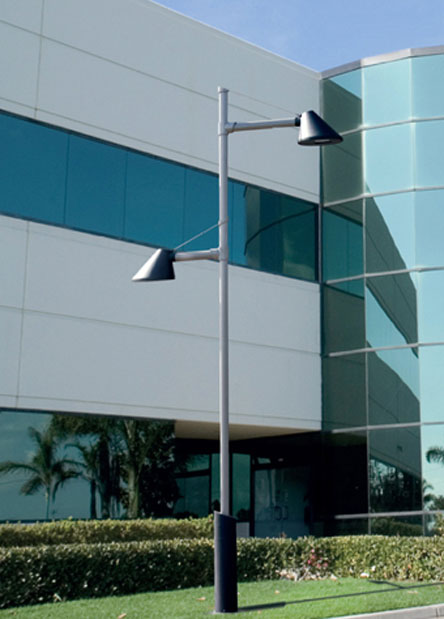

Ellipse

Composed by:

  • base oval with slanted top, made ​​of cast iron EN-GJL-200;
  • pole elliptical tubular galvanized steel FE360B;
  • connecting rod between the pole and the luminaire in stainless steel AISI 316 ;
  • connecting element in steel FE360B.
Finish:

the cast iron parts undergo a treatment of sandblasting, dipping in a zinc component, a hand-coated with zinc phosphates, epoxy powder coated in gray cast iron furnace (minimum thickness. 250 microns), guarantee minimum 2,000 hours Salt spray, steel parts are galvanized, hot dust at the hands of a zinc phosphate, epoxy powder coated in gray cast iron furnace (minimum thickness. 250 microns), guarantee minimum 2,000 hours in salt spray; aluminum parts undergo a treatment of degreasing, phosphating bottom of the zinc phosphate, powder coated and oven-dried UV-resistant, with a thickness ≥ 150 microns and guarantee at least 2,000 hours of stay in the salt spray.

Brochures for Ellipse

Brochures for Ellipse
Preview Description Format Size Open
IT Light Brochure
PDF 3.6 MB Open
