About 2001

2001

Consisting of:

  • a base in a single cast of ductile iron EN-GJS-500-7 at the UNI 1563, (mm.180 diameter, height. 1260, ground attack mm diameter. 260), firmly attached to the pole by means of internal concealed screws;
  • a pole with a tapered diameter and 100 mm respectively mm.89, FE360B made ​​entirely of steel, galvanized and painted;

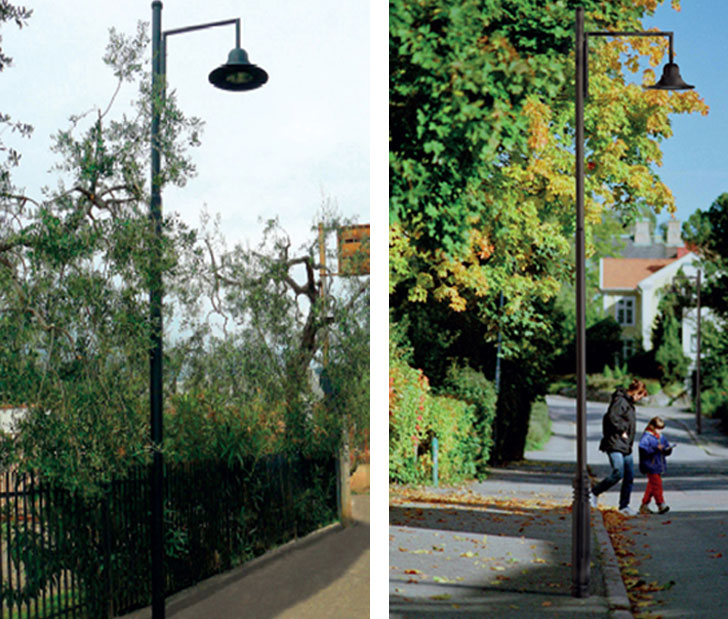

  • a terminal element of cylindrical shape made ​​of decorative cast iron EN-GJS-500-7 UNI 1563, fixed at the top of the pole with concealed screws. The lamp is available in varying heights, ranging from 5/6 and 7 meters above ground and can be equipped with two different types of arms, specifically designed to support various types of lighting and composition to create multiple single-arm, double to 180 °, three times at 120 °, is positioned at the same height relative to the ground, is positioned at heights different from each other, in order to thus meet the varied design requirements (eg, both illumination of a roadway, both of the adjoining cycle path) .
  • The arm is characterized by the shape "inverted L" resulting from the combination of one element of tubular steel FE360B galvanized and painted steel, bent to small radius with an angle of 90 degrees also topped with a straight element FE360B galvanized steel and painted, arranged to receive at its end the illuminating body. The streetlight 2001 belongs to a collection of products coordinated street furniture (benches, bollards, etc. portacicli.), All characterized by the same design specifically designed to be inserted into both traditional and modern contexts, and to create a furniture homogeneous by both the stylistic and functional point of view.
Finish:

The cast parts undergo a treatment of degreasing, phosphating bottom of the zinc phosphate, powder coated and oven-dried UV-resistant, with a thickness ≥ 150 microns and guarantee at least 2,000 hours of stay in the salt spray, the parties steel are treated with a zinc plating, clinging primer, powder coated and oven-dried, UV resistant, with a thickness ≥ 150 microns and guarantee at least 2,000 hours of stay in the salt spray. Stainless steel screws.
