About Showerpipe with thermostatic mixer and 1jet overhead shower

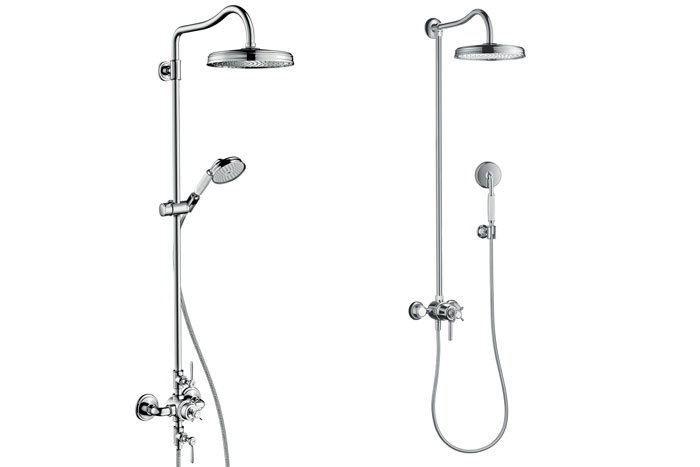

Showerpipe with thermostatic mixer and 1jet overhead shower
Product Features
- shower head size: 240 mm
- overhead shower angle adjustable
- spray type: Rain
- flow rate Rain spray (at 0.3 MPa): 17 l/min
- operating pressure: min. 0.25 MPa / max. 1.0 MPa
- fully chrome-plated spray disc
- shower arm length: 430 mm
- thermostat Axor Montreux
- safety lock at 38° C
- adjustable hot water limitation
- outlets controlled via turning handle
- installation type: exposed installation
- connection dimension DN15
- connection thread G ½
- centre distance 150 ± 16 mm
Consists of
- Montreux 1jet hand shower (#16320XXX)
- Metal shower hose 1.60 m (#28116XXX)
- Axor Carlton 240 1jet plate overhead shower (#28474XXX)
