About Utilev Utility Forklift Truck UT13-20PTE

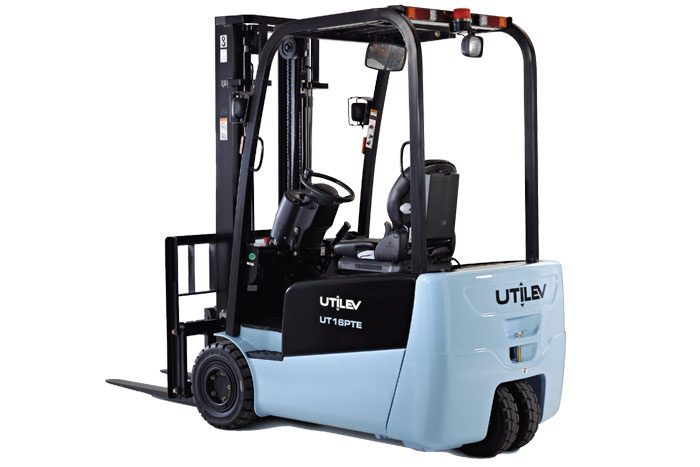

Utilev Utility Forklift Truck UT13-20PTE

UTILEV® 3-wheel electric forklift trucks feature 48V AC technology, with twin brushless 4.6kW drive motors on the front axle and an 8.6kW hoist motor, delivering excellent performance, as well as low noise levels.

Both drive and hoist systems are fully adjustable to suit the load, the working area and the operator - more than 30 performance parameters can be adjusted to suit the type of load, operating environment and skill of the driver.

Curtis AC Controllers optimise battery power, particularly helpful on ramps and long runs as well as high lifts. The truck is available with fully accessible 48V Batteries with 500-750Ah capacity.

In-built diagnostics record intermittent faults and service requirements, reducing expensive service time. All trucks feature a standard warranty of 12 Months / 2000 Hours.

The range of rigid masts provides excellent visibility for precise load handling and is compatible with a range of fork lengths, as well as attachments, including an integral sideshift.

The operator compartment offers easy driver access, thanks to the low step height and conveniently placed grab handles. The standard seat delivers superior comfort and lumbar support to ensure that the operator can work efficiently throughout the day.

The automotive-style controls ensure ease of operation. The dash display includes performance parameter and fault code information, hour meter, battery level indicator and drive wheel alignment indicator. The small diameter steering wheel features light, precise steering and is tilt adjustable for optimum comfort. The manual hydraulic controls are mounted next to the seat, are within easy reach. A 3rd function lever is available as an option.

The uncluttered floor plate offers excellent foot space with well-placed accelerator and brake pedals and provides plenty of leg room to help the driver to work comfortably.

Rear view mirrors, an audible reverse alarm and a full light kit, including a strobe light, are fitted as standard, to facilitate handling operations.

Technical Details

48V AC Technology 2 x 4.6 kW Drive and 8.6 kW Hoist Motors, with Curtis Traction & Pump Controller

Masts: 2-stage LFL 3500-4000mm MFH (Class II), 3-stage FFL 4000-6000mm MFH (Class II)

Carriage: 1000mm, Class II

Forks: 1070mm, 1150mm or 1220mm, Class II

Standard Superelastic Tyres -Drive: 18x7-8, Steer: 15 x 4.5-8

Options include: Integral Sideshift, 3 way valve & hose group, Full Suspension Seat, Rear Work Light, Lowered Overhead Guard, Non-marking Superelastic Drive and Steer Tyres, 500-750Ah Batteries
