About Utilev Utility Forklift Truck UT40-50PS

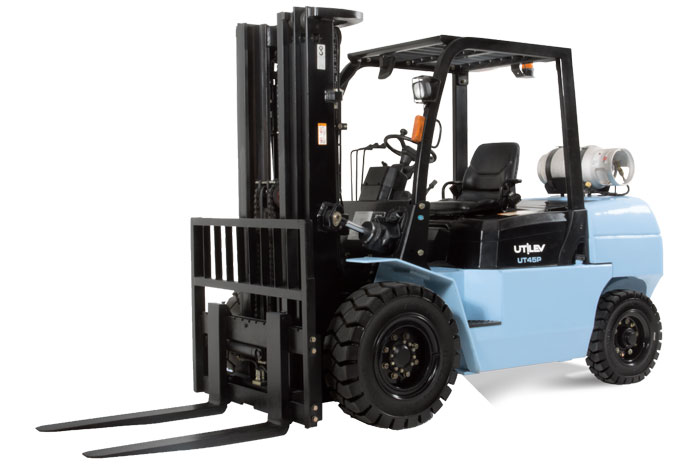

Utilev Utility Forklift Truck UT40-50PS

UTILEV® UT40-50PS forklift trucks are available with a range of efficient, quiet, clean-running Perkins Euro 3A Diesel engines or GM LPG or Dual Fuel engines and a two-speed autoshift transmission, delivering low noise and vibration levels.

Both the drive and steer axles are designed for durability and longevity. Efficient cooling and filtration reduces the risk of unplanned downtime - All trucks feature a standard warranty of 12 Months / 2000 Hours.

The range of rigid masts provides excellent visibility for precise load handling and is compatible with a range of backrests carriages, load and forks, as well as attachments, including an integral sideshift.

The operator compartment offers easy driver access, thanks to the low intermediate step height and conveniently placed grab handles. The standard seat delivers superior comfort and lumbar support to ensure that the operator can work efficiently throughout the day.

The small diameter steering wheel features light, precise steering. The steering column is tilt adjustable for optimum comfort and includes a forward / reverse lever and direction indicator lever. The manual hydraulic controls are cowl-mounted and within easy reach.

The uncluttered floor plate offers excellent foot space with a traditional three pedal arrangement, for accelerator, brake and inching. Inching is mechanical and adjustable, delivering precise truck positioning during handling operations. The conventional drum brakes with automatic adjustment provide excellent stopping power.

Rear view mirrors, an audible reverse alarm and a full light kit, including a strobe light, are fitted as standard, to facilitate handling operations.

Technical Details

Engines: Perkins 4.4L Diesel (56kW) or GM 4.3L LPG/Dual Fuel (74kW) engines

Transmission: 2-speed autoshift, 2-speed forward, 1 reverse.

Masts: 2-stage LFL and 3-stage FFL, up to 5.5m

Carriages: 1250, 1400 & 1500mm (Class III - IV)

Forks: 1070 x 150 x 50mm (Class III-IV) as standard with 1220 & 1520mm lengths also available

Pneumatic Tyres: Drive: 8.25-15-14PR (4T), 300-15-18PR (4.5-5T); Steer -7.00-12-12PR

Options include: Counterweight Exhaust, Air Intake with Pre-cleaner, Integral Sideshift or Integral Sideshift and Fork Positioner, Valve & Hose Groups - 3 and 4 way, Cab with/without Heater, Air Conditioning, Full Suspension Seat, Operator Presence System, Rear Work Light, Superelastic tyres, Dual drive wheels

Brochures for Utilev Utility Forklift Truck UT40-50PS

Brochures for Utilev Utility Forklift Truck UT40-50PS
Preview Description Format Size Open
Utilev Utility Forklift Truck UT40-50PS Specification Sheet
PDF 596 kB Open
Utilev Utility Forklift Truck UT40-50PS Range Brochure
PDF 3.9 MB Open
