About AMF TOPIQ Sonic Element

AMF TOPIQ Sonic Element

AMF TOPIQ Sonic Element

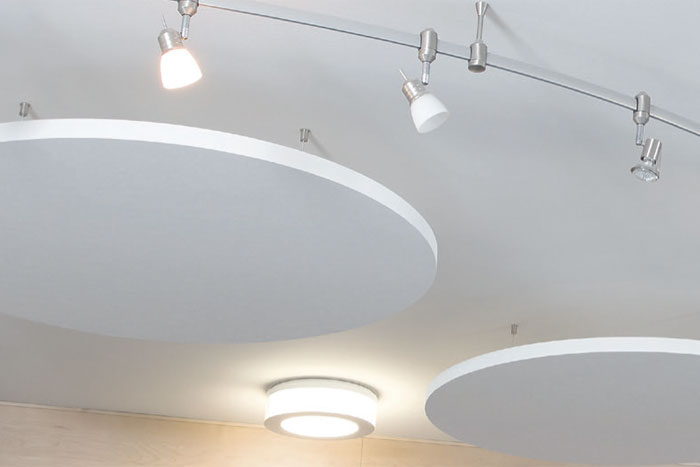

TOPIQ® Sonic element is a frameless ceiling raft based on bio-soluble rock wool with an all-over fleece-coating and a high quality finish. The visible acoustic fleece of the surface and form edges are provided with a special colour-coating and enhance the form’s physical impact. Furthermore, the monolithic ceiling raft has excellent sound absorption properties. An effortless floating aesthetic is complemented by an almost weightless, unconventional appearance, simple form and highest acoustic functionality.

Technical Performance

Sound absorption : EN ISO 354

Humidity resistance : up to 95% relative humidity

Form/ Size :
  • Circular - up to Ø 1200 mm
  • Square - up to max. 1200 x 1200 mm
  • Hexagon - up to max. 1200 mm sides
  • Rectangular - up to max. 1800 x 1200 mm
  • Oval - up to max. 1800 x 1200 mm
Thickness / Weight : approx. 40 mm (approx. 5,6 kg/m²)

Installation components :
  • Cable hanger with hooks,
  • Cable and ceiling fixings (Cable length 1.0 m)
  • Tension spring fixing to raft

Surfaces and construction design

  • White fleece-coated on all sides
  • Colour similar to RAL 9010
  • Frameless, joint-free
  • Wide range of forms (add hexagon & rectangle)
  • Floating effect due to set-back fixing points
  • Flexible, adjustable suspension

Brochures for AMF TOPIQ Sonic Element

Brochures for AMF TOPIQ Sonic Element
Preview Description Format Size Open
AMF Topiq Sonic Element Catalogue
PDF 2.5 MB Open
