About Knauf A@TCH Regular Access Panel

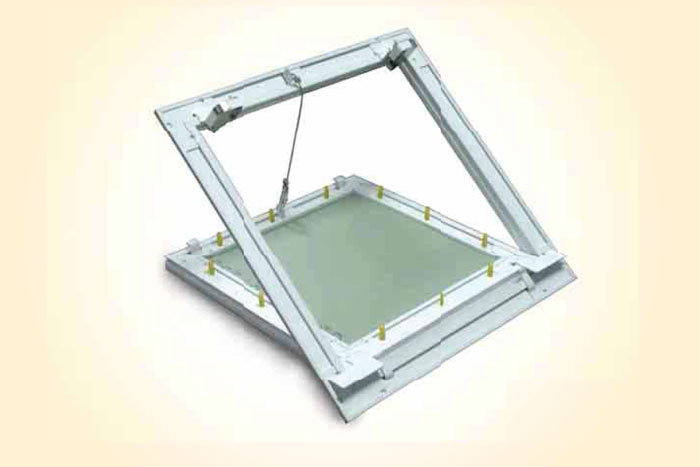

Knauf A@TCH Regular Access Panel

Knauf A@TCH Regular Access Panel

Knauf A@TCH Regular Access Panels adapt perfectly to any environment, whether its for a wall or ceiling, in a public building or at home,

Knauf Regular Access Panels satisfy all the majority of requirements and therefore are the optimal solution for most building structures.The flush bonded Knauf MR Board allows for flawless surfaces with minimal effort.


  • Suitable for installation within drywall partitions and ceilings
  • Ready for direct tiling on-site
  • Prepared for surface finishing quality Q4 (On site)


  • Corners of the frame are reinforced with non-corrosive galvanized steel angles
  • Self-activating pressured spring locks
  • Flush bonded face gypsum board made of Knauf compliant EN520 MR Moisture-resisitant boards
  • Safety latch secured by galvanized angle on the inner side of frame
  • Various dimensions available (upon request)

Technical Data

Frames made from stable aluminium profile.
BS EN 755 - 9: 2016

Connecting Frame Parts:
Galvanized steel

Material Inlay:
Knauf EN 520 compliant (MR) Moisture resistant gypsum board.

Material Screws
Phosphated, rust-prevented, pike protected with cap.

Closing / Opening Mechanism:
2 x Spring loaded galvanized steel locks with safety chain


Standard Sizes
  • 150 x 150 mm
  • 200 x 200 mm
  • 300 x 300 mm
  • 400 x 400 mm
  • 500 x 500 mm
  • 600 x 600 mm
Special dimensions available upon request
