About Penetron

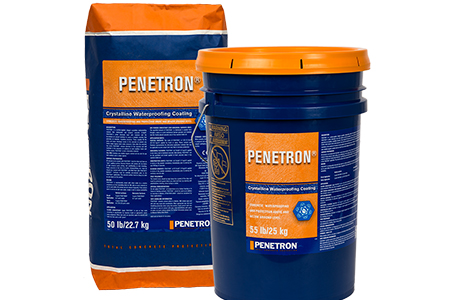

Penetron

Penetron is a surface-applied cementitious slurry coating that waterproofs concrete in-depth. Penetron can be applied to all structurally sound concrete, new or old. It is equally effective when applied form either the positive of negative sides of a concret structure (with or against water pressure)

Brochures | Specifications | CAD details

Brochures for Penetron

Brochures for Penetron
Preview Description Format Size Open
Penetron PDS
PENETRON® is a surface-applied, integral crystalline waterproofing material, which waterproofs and protects concrete in-depth. It consists of Por tland cement, specially treated quar tz sand and a compound of active chemicals. PENETRON® needs only to be mixed with water prior to application.When PENETRON® is applied to a concrete surface the active chemicals react with moisture and the by-products of cement hydration to cause a catalytic reaction which generates an insoluble, crystalline structure. These crystals fill the pores and minor shrinkage cracks in the concrete to prevent any further water ingress (even under pressure). However, the PENETRON® will still allow the passage of vapor through the structure (i.e. the concrete will be able to “breathe”). Even after the concrete has cured, PENETRON® remains dormant in the concrete and will reactivate in the presence of moisture to seal capillary tracts and hairline cracks. In addition to waterproofing the structure, PENETRON® protects concrete against seawater, wastewater, aggressive ground water and many other aggressive chemical solutions.
PDF 106 kB Open
Penetron Brochure
THE CONCRETE SOLUTION.
PDF 2.8 MB Open

Specifications for Penetron

Specifications for Penetron
Description Format Size Download
Section 07162 - Crystalline Waterproofing
Section includes: A. The Cementitious capillary waterproofing materials specified herein shall be of the surface applied capillary action type, capable of providing the waterproofing qualities as stated under the guarantee, for all vertical and horizontal applications, at locations shown on the drawings or on the finish schedules; B. All work of the section shall comply with the conditions of the contract, the drawings and any special conditions forming a part of the contract.
PDF 126 kB Download
Section 07162 - Crystalline Waterproofing
Section includes: A. The Cementitious capillary waterproofing materials specified herein shall be of the surface applied capillary action type, capable of providing the waterproofing qualities as stated under the guarantee, for all vertical and horizontal applications, at locations shown on the drawings or on the finish schedules; B. All work of the section shall comply with the conditions of the contract, the drawings and any special conditions forming a part of the contract.
DOCX 154 kB Download

CAD details for Penetron

CAD details for Penetron
Preview Description Format Size View Download
CAD Details
CAD Details
ZIP/PDF 759 kB View Download

Request for Information

(Please check companies and/or products above. Not to be used to promote your products or services.)

*Name:
*Email:
Company:
*Company type:
*Phone:
*Address:
*Request:
    (* = Mandatory field)



03 15 00 - Concrete Accessories
07 - Thermal and Moisture Protection
07 05 00 - Common Work Results for Thermal and Moisture Protection
07 10 00 - Dampproofing and Waterproofing
07 11 00 - Dampproofing
07 11 13 - Bituminous Dampproofing
07 11 16 - Cementitious Dampproofing
07 14 00 - Fluid-Applied Waterproofing
07 16 00 - Cementitious and Reactive Waterproofing
07 16 13 - Polymer Modified Cement Waterproofing
07 16 16 - Crystalline Waterproofing
07 16 19 - Metal Oxide Waterproofing
