About Accessories > Xypex Restora-Top Series

Accessories > Xypex Restora-Top Series

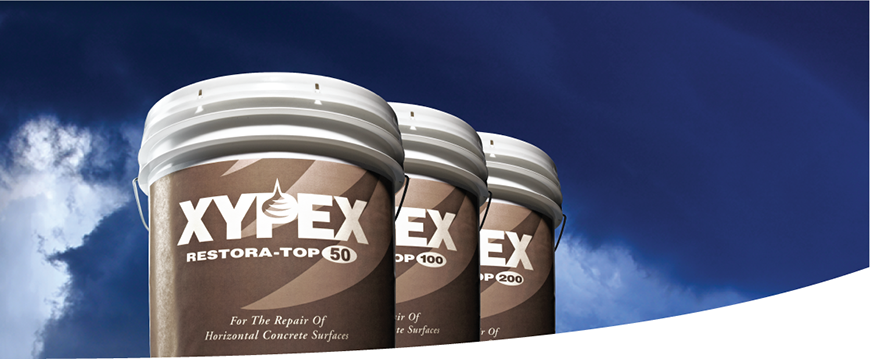

Restora-Top 50, 100, 200

Xypex Restora-Top products are designed specifically for the repair and rehabilitation of horizontal concrete surfaces such as warehouse floors, bridge decks, roads, curbs, and walkways where the repaired area must be returned to normal service within two hours of the completed repair.

Restora-Top products consist of specially modified Portland cement, aggregates, admixtures and bonding agents combined in controlled proportions to provide excellent adhesion properties, rapid setting and strength gain, as well as superior durability and reduced shrinkage.

Restora-Top 50 is used for the patching or resurfacing of deteriorated concrete up to 1/2 in. (12 mm) thick. It is used on surfaces where light traffic conditions exist.

Restora-Top 100 is used for patches up to 1 in. (25 mm) thick where rapid setting and strength gain are required.

Restora-Top 200 is recommended for patching requirements that exceed 1 in. (25 mm) thickness and where high impact resistance is required.

Recommended for:

Restora-Top 50

  • Concrete Floors
  • Driveways
  • Decks
  • Patios
  • Steps
  • Walkways
  • Curbs
  • Rain Damaged Slabs
  • Levelling Course for Thin Set Mortars

Restora-Top 100 & 200

  • Concrete Floors
  • Parking Decks
  • Walkways
  • Walkways
  • Warehouse Floors
  • Bridge Decks
  • Roads

Advantages

Restora-Top 50

  • Excellent adhesion to existing concrete surfaces
  • Easy to use – just add water and mix
  • Approximately 30 minutes working time
  • Contains an integral bonding agent
  • Moist curing is not normally required
  • Ready for foot traffic in about 2.5 hours
  • Suitable for indoor and outdoor use
  • VOC compliant

Restora-Top 100 & 200

  • Excellent adhesion to existing concrete surfaces
  • Traffic-ready in two to four hours
  • Easy to use – just add water and mix
  • Rapid set and strength gain
  • Suitable for indoor and outdoor use
  • VOC compliant

Packaging

Xypex Restora-Top 50 is available in 55 lb. (25 kg) pails.

Storage

Xypex products must be stored dry at a minimum tem- perature of 45ºF (7ºC).

Coverage

At 1/4 in. (6.4 mm) thickness, each 55 lb. (25 kg) pail of Restora-Top 50 will cover 24.8 sq. ft. (2.4 m2). For brush or broom applications, the yield will vary with the thick- ness and texture required. Each 55 lb. (25 kg) pail will cover an area of approximately 105 - 115 sq. ft. (10 - 11 m2) for a brush or broom application.
