Dryshake > Xypex Concentrate DS Series

Concentrate DS-1 & DS-2

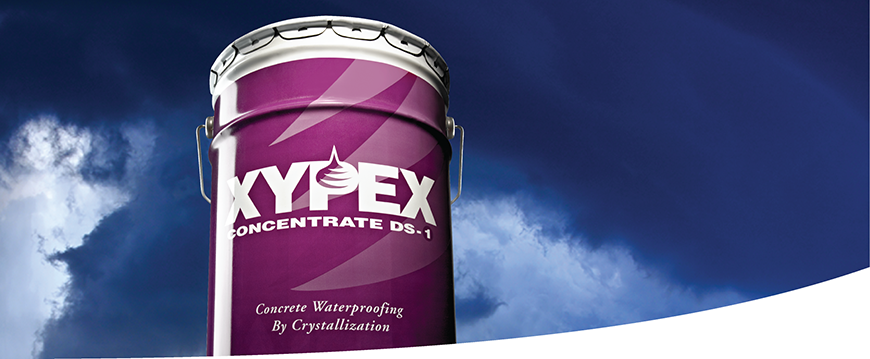

Xypex Concentrate DS-1 and DS-2 are Xypex "dryshake" products installed into the horizontal surface of freshly laid concrete.

Concentrate DS becomes an integral part of the concrete surface thereby eliminating problems normally associated with coatings (e.g. scaling, dusting, flaking and delamination). The active chemicals react with the moisture of the fresh concrete causing a catalytic reaction which generates a non-soluble crystalline formation within the pores and capillary tracts of the concrete.

Concentrate DS-1 is formulated specifically for waterproofing and to provide protection from aggressive chemicals.

Concentrate DS-2 provides these same properties but additionally enhances the abrasion resistance by incorporating a hardener.

Recommended for:

Concentrate DS-1

  • Reservoirs
  • Sewage and Water Treatment Plants
  • Underground Vaults
  • Secondary Containment Structures
  • Foundations
  • Tunnels and Subway Systems
  • Swimming Pools
  • Parking Structures

Concentrate DS-2

  • Sewage and Water Treatment Plants
  • Traffic Bearing Surfaces
  • Warehouse Floors
  • Foundation Slabs
  • Below-grade Parking Structures

Advantages

  • Resists extreme hydrostatic pressure
  • Becomes an integral part of the substrate
  • Highly resistant to aggressive chemicals
  • Can seal hairline cracks up to 0.4 mm
  • Allows concrete to breathe
  • Non-toxic
  • Less costly to apply than most other methods
  • Permanent
  • Increases flexibility in the construction schedule

Packaging

Xypex Concentrate DS-1 and DS-2 is available in 60 lb. (27.2 kg) pails.

Coverage

Under normal conditions, the coverage rate for Xypex Concentrate DS-1 is 1.75 lb./sq. yd. (0.95 kg/m2) and the coverage rate for Xypex Concentrate DS-2 is 6.75 - 7.5 lb./sq. yd. (3.6 - 4.0 kg/m2), depending on the degree of abrasion resistance required.
