About Bap’SI Self-Balanced Grilles

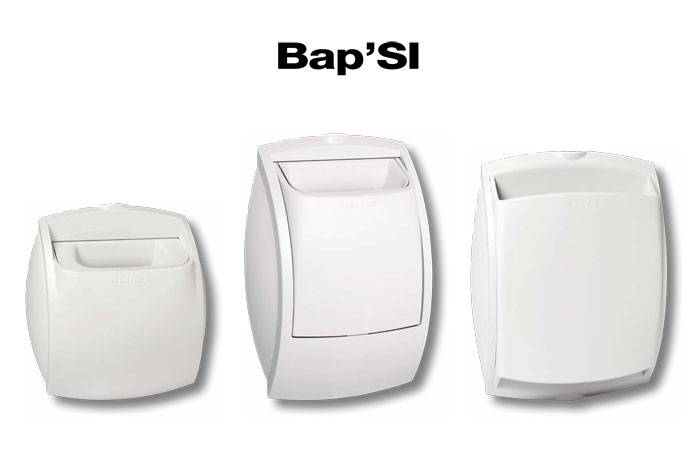

Bap’SI Self-Balanced Grilles

Bap’SI Self-Balanced Grilles

Advantages

  • Full range with simple and double airflow from 15 to 150 m3/h to meet all requirements in the residential housing and commercial premises, both for new buildings and renovations.
  • Bap’SI twin also exists in an air supply version, combined with a MR
  • Bap’SI Ø 125 mm has NF-VMC certification
  • Innovative design which integrates perfectly into sanitary areas, kitchens and offices.
  • Original design without front grill preserves the good looks of the grille even when it is dirty.
  • Thanks to its removable front face, Bap’SI is easy to clean without being removed from the wall.
  • Modularity of installation and airflow

Versions

Bap'SI Single Airflow
Single airflow from 15 to 60 m3/h; Range NF-VMC* certified for certain references
  • Self-balanced grilles (constant airflow over the operating range)
  • Single airflow from 15 to 60m3/h
  • Operating range: 50 – 160Pa
  • Tolerance on airflow: [-0+30%]
  • The Modulo range provides a choice of airflow rate. One grille gives several airflow values (easily adjusted on-site), which limits the number of references relative to the standard range: (a) Modulo S1: for WC’s and bathrooms in collective housing. (b) Modulo S2: for sanitary facilities in small commercial premises
  • 2 types of connection: Ø125mm and without shaft
  • The Ø125mm version has a Roll-in seal
  • Packaging: 10 pieces per carton
Bap'SI Double Airflow
Double airflow from 15/30 to 45/135 m3/h; Range NF-VMC* certified for certain references
  • Self-balanced exhaust grilles (constant airflow over the operating range)
  • Double airflow with basic airflow of 15 to 45 m3/hour and boost airflow of 30 to 135 m3/hour
  • Operating range: 50 – 160Pa
  • Tolerance on airflow: [-0+30%]
  • The Modulo range provides a choice of airflow rate. One grille gives several airflow values (easily adjusted on-site), which limits the number of references relative to the standard range: (a) Modulo D1: for F1 and F2 kitchens; (b) Modulo D2: for F3 kitchens and larger
  • 2 types of connection: Ø 125 mm and without shaft
  • The Ø 125 mm version has a Roll-in seal
  • Packaging: 10 pieces per carton.
Bap'SI Twin
Single airflow from 15 to 150 m3/h; Also exists in air supply version in association with a MR
  • Self-balanced grille (constant airflow over the operating range)
  • Single airflow from 15 to 150 m3/h.
  • Operating range: 50-160Pa
  • Tolerance on airflow: [-0; +30%]
  • The Modulo range provides a choice of airflow rate. One grille gives several airflow values (easily adjusted on-site), which limits the number of references.
  • 2 types of connection: Ø 125 mm and without shaft
  • The Ø 125 mm version has a Roll-in seal for Bap’SI twin 15 to 90 m3/hour, and a foam seal for Bap’SI twin 100 to 150 m3/hour
  • Packaging: 10 pieces per carton

Brochures for Bap’SI Self-Balanced Grilles

Brochures for Bap’SI Self-Balanced Grilles
Preview Description Format Size Open
Bap’SI Self-Balanced Grilles Brochure
PDF 6.1 MB Open
