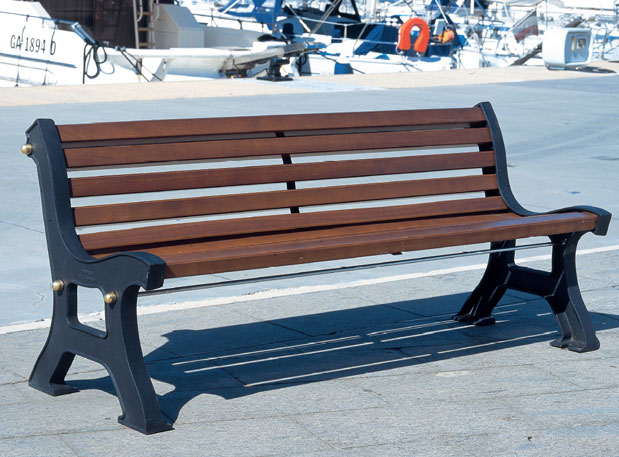

Composed by:

• 2 side supports made of cast iron EN-GJL-200 to UNI EN 1561, weight 19 kg / each, with 10 accommodations (Section 60x50 mm) to house the wooden bars;
• 3 rods (diameter mm 12) galvanized steel, fi to read fixed to the end and supports with nuts.For aesthetic reasons, and functional and to provide greater resistance against acts vandalism and accidental connections, using the cover nut Brass;
• 10 bars in Iroko wood, galvanized steel FE360B and painted or stainless steel AISI 316 (section 45x55 mm) chamfered at the corners;
• Central rompitratta steel containment Plated Fe 360B.

  Finish:

  the cast iron parts subjected to sand, primer for immersion in the zinc component, a hand spray the same primer with zinc phosphate, fi nish dried powder gray cast iron in the oven (minimum thickness. 180 microns), warranty minimum 2000 hours of salt spray; steel parts, if any, undergo treatment incatura electrodeposited and fi nish in the oven dried powder gray cast iron (minimum thickness 180 microns) stainless steel parts, if present, are left to the natural wood is treated with a hand of primer and finish for external fi nish.

  Fixing:

  The side supports are designed for tassellaggio ground.

  Technical parameters:

  Total space - Seat height - total weight:

• 1700x640x725h mm - 400 mm - 65 kg;
• 2000x640x725h mm - 400 mm - 70 kg.
