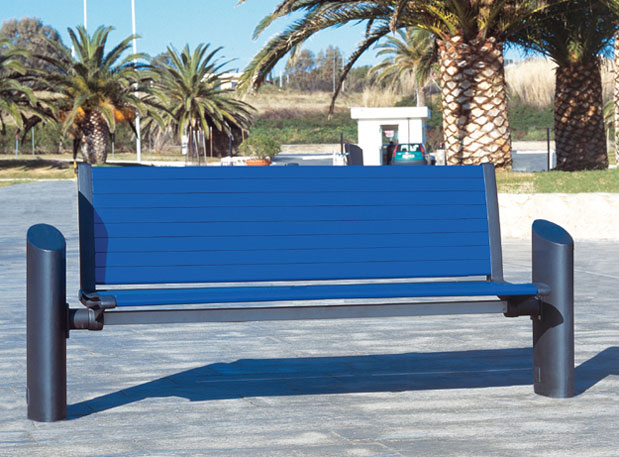

Lybra

Composed by:

• 2 side supports elliptical cross section (140x270 mm, 730 mm lower height, greater height mm 830) with a sloping top, made of cast chisa EN-GJL-200 according to UNI EN 1561;
• Supports 2 ni fusion chisa EN-GJL-200 according to UNI EN 1561, prepared for the inclusion of 16 bars (8 for 8 for the back seat more) Iroko wood seasoned system assembled with male / female;
• Zinc plated Fe 360B steel rods;
• bar spacer and support to the profiles of cast iron, made of rectangular steel box section (section 50x30 mm).

the cast iron parts subjected to sand, primer-component zinc immersion, spray a coat of the same zinc phosphate primer, finishing powder dried in an oven of gray cast iron (minimum thickness. 180 microns), the minimum guarantee 2000 hours in salt spray;
steel parts undergo treatment of zinc plating, finishing in the oven dried powder of gray cast iron (minimum thickness. 180 microns), the wood is treated with a coat of primer and glossy exterior.

Fixing:

by drowning of 250 mm for side support.

Technical parameters:

2140x600x870h mm overall size, seat height 430 mm, total weight 80 kg.
