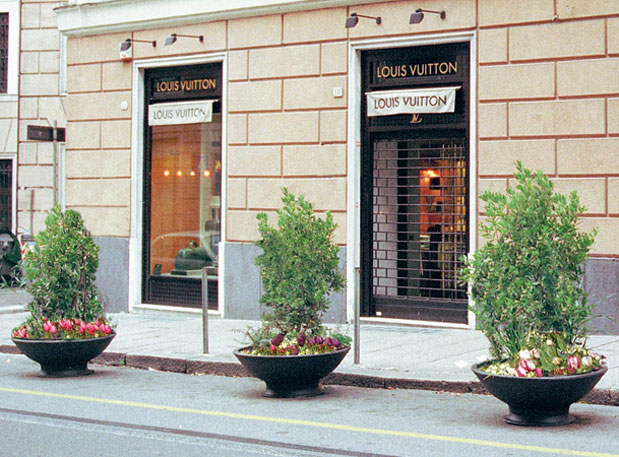

Marty
Composed by:
- pedestal made of cast iron EN-GJL-200 according to UNI EN 1561 (diameter less than 600 mm, mm diameter exceeding 480) fastened to the top with two M12 stainless steel eyebolts used for lifting, with a central hole for release of excess water;
- well-bowl made of cast iron EN-GJL-200 (diameter less than 480 mm, external diameter exceeding 1100 mm, mm internal diameter greater than 1000), with a central hole on the bottom for the escape of excess water.
Finish:
The cast iron parts subjected to sand, primer-component zinc immersion, spray a coat of the same zinc phosphate primer, finishing powder dried in an oven of gray cast iron (minimum thickness. 180 microns), the minimum guarantee 2000 hours in salt spray.
Technical parameters:
diameter 1100 mm, height 450 mm,
total weight 170 kg.
