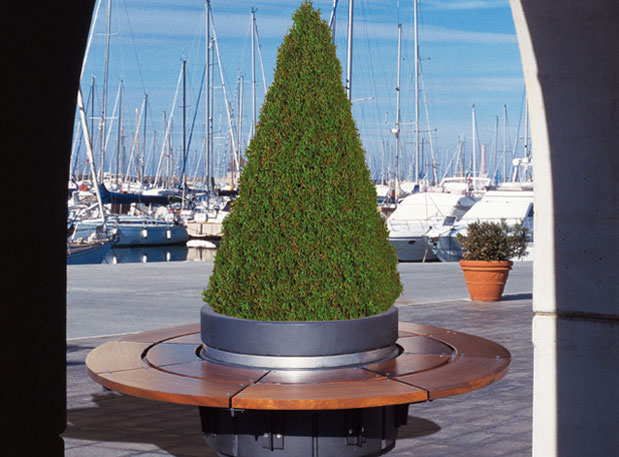

Tonda Con Seduta/With Round Seat
Composed by:
- cylindrical tank made of cast iron EN-GJL-200 according to UNI EN 1561 (diameter 810 mm, height 560), with vertical decorative, with holes on the bottom for the escape of excess water;
- decorative ring in stainless steel AISI 304 (height mm 40) set to 400 mm from the base;
- 8 shelves cast iron EN-GJS-500-7 according to UNI EN 1563 (ledge 400 mm, height 300 mm, thickness mm 8);
- 16 staves per serving circular chamfered corners, seasoned wood Iroko (200x25 mm section), which join to form two concentric rings for the seat, each plank has two pair of holes for attaching the brackets.The article can also be supplied complete with AISI 304 stainless steel pole placed at the center of the planter, and consists of tapered tubes.The tapers are placed on the top rings and decorative items from cast iron EN-GJL-200.
The pole is designed to house groups of galvanized steel Fe 360B (up to 3 fixtures).
Finish:
The cast iron parts subjected to sand, primer-component zinc immersion, spray a coat of the same zinc phosphate primer, finishing powder, dried in the oven, gray cast iron (minimum thickness. 180 microns), the minimum guarantee 2000 hours in salt spray;
ring in brushed stainless steel, wood is treated with a coat of primer and glossy exterior.
Technical parameters:
560 mm height,
seat height 410 mm,
1710 mm outer diameter,
total weight 250 kg.
