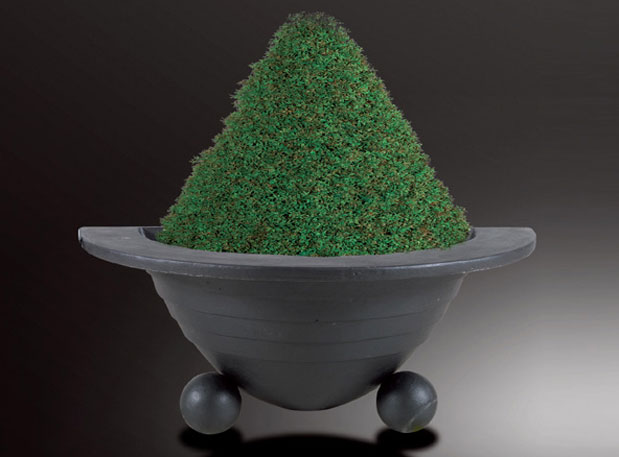

Simy-Simy A Muro

Composed by:

• bath tub made of hollow cast iron EN-GJL-200 according to UNI EN 1561, (outside diameter 1350 mm for the version 135 and 900 mm Simy for Simy 90), concentric rings on the outer surface has to climb down and has a central hole on the bottom for the escape of excess water;
• 3 ball bearings in cast iron EN-GJL-200 (diameter mm 120) designed to support the tub, inside the same set, by bolts.

  Finish:

  The cast iron parts subjected to sand, primer immersion zinc component, a coat of spray the same zinc phosphate primer, finishing powder dried in oven gray cast iron (minimum thickness. 180 microns), the minimum guarantee 2000 hours in salt spray.

  Technical parameters:

  outside diameter - height - total weight:
  Simy 135: 1350 mm - 475 mm - 200 kg;
  Simy 90: 900 mm - 475 mm - 100 kg.

  Simy wall

  Composed by:


  • concave semi-circular bath made of cast iron EN-GJL-200 according to UNI EN 1561, on the outer surface concentric semicircles has to climb down and has a central hole on the bottom for the escape of excess water and two fixing holes on the back wall;
  • 2 ball bearings in cast iron EN-GJL-200 (diameter mm 120) designed to support the tank and fixed to the inside by bolts.

  Finish:

  The cast iron parts subjected to sand, primer-component zinc immersion, spray a coat of the same zinc phosphate primer, finishing powder, dried in the oven, gray cast iron (minimum thickness. 180 microns), minimum guarantee 2000 hours in salt spray.

  Fixing:

  Through bolts.

  Technical parameters:

  90Ox450x475h mm overall dimensions,
  total weight 60 kg.
