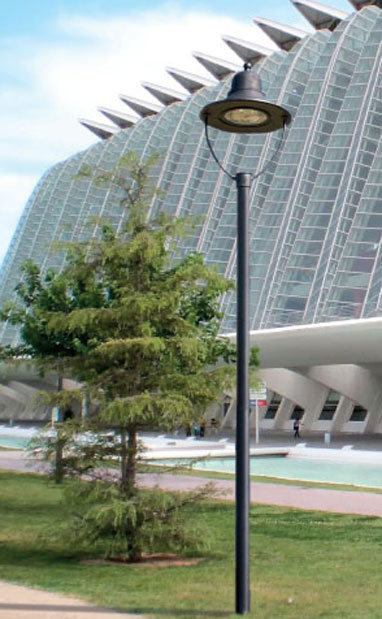

NBT/91
Composed by:
- bell cast in aluminum die casting in accordance with UNI EN 1706 rounded head (diameter 200 mm, height 160 mm, thickness 3 mm;
- substructure diam. 560 mm, height 150 mm, made entirely cast aluminum UNI EN 1706;
- access to the optical and the electrical compartment by opening compass of the upper structure containing the reflector and the plate door components, unlockable by 3 captive screws;
- Optical MID-LUX ® made in 99.9% pure aluminum super finish NATURAL polished;
- possibilities for optimizing performance in connection with the photometric scope, through regulation system position lamp on a slide with preset or selected locations user in a continuous way;
- cover lens made of frosted tempered flat glass high efficiency thickness 5 mm;
- double pole switch;
- porcelain, available connection type E27 or E40 with IMQ;
- Stainless steel screws;
- Class II isolation;
- degree of protection IP 65;
- CE mark (conforms to EU standards);
Finish:
aluminum parts undergo a treatment for degreasing, phosphating
bottom of the zinc phosphate and powder dried in an oven-resistant
UV, with a thickness ≥ 150 microns and minimum guarantee of 2,000 hours
spent in salt spray.
