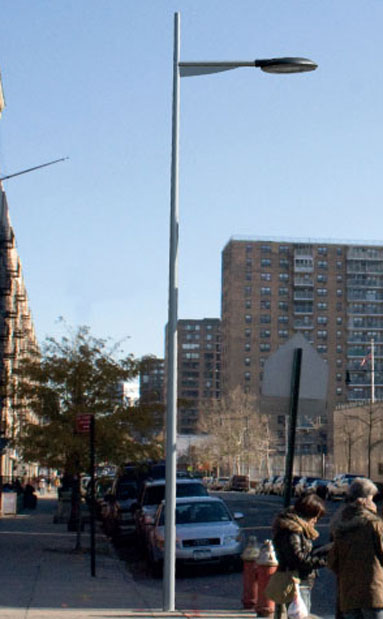

Slim One

Composed by:

• upper body made entirely of cast aluminum in accordance with UNI EN 1706, the aerodynamic shape;
• lower structure made entirely of cast aluminum in accordance with UNI EN 1706 contains the flat glass;
• ring made of sheet steel, thickness 5 mm, between the body and the cap superior sealing system that allows the grafting of the fixture on is available as an attachment system "hanging";
• system for attack on a pole to reach in aluminum die UNI EN 1706, in diam. 60 can be regulated the inclination of the fixture to the road surface by the addition of the joint with external references on scale of 0 to ± 15 ° and manually locked with allen key;
• access to the optical and the electrical compartment by opening a compass the substructure of the structure, quickly releasable by no opening 3 screws for quick action;
• MID-LUX ® optics made of aluminum with 99.9% pure super brilliant finish NATUREL;
• possibilities for optimizing performance in connection with the photometric field application system by adjusting the position of the lamp on slide with default or user-selectable positions continuously;
• frosted glass cover lens made of tempered high-level yield, 5 mm thick;
• double pole switch automatically activated upon opening;
• gear tray with quick;
• porcelain type E27 or E40 with IMQ;
• Stainless steel screws;
• Class II isolation;
• degree of protection IP 65;
• CE mark (conforms to EU standards);
