About Axor LampShower 1jet with ceiling connector designed by Nendo

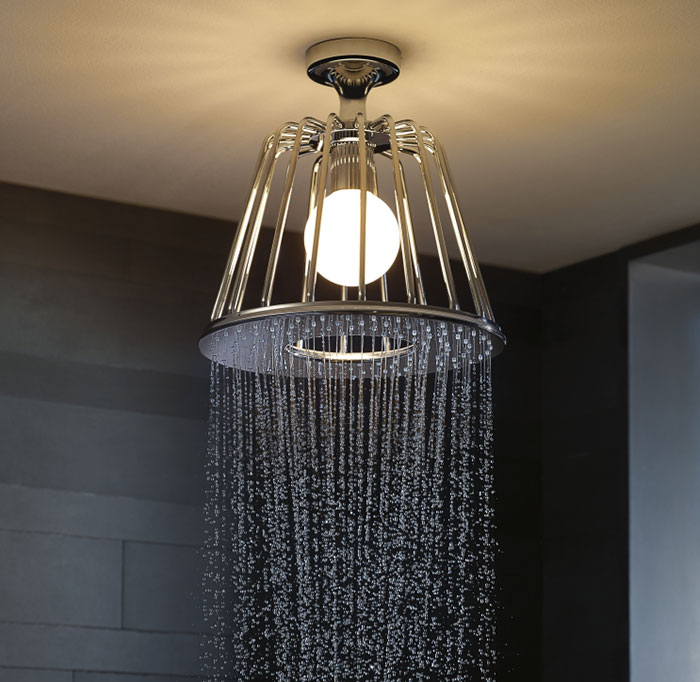

Axor LampShower 1jet with ceiling connector designed by Nendo

  • shower head size: 275 mm
  • spray type: Rain
  • flow rate Rain spray (at 0.3 MPa): 18 l/min
  • spray zones: special spray image from placed inside spray nozzles on the inner diameter
  • fully chrome-plated spray disc
  • material spray disc: metal
  • spray disc removeable for cleaning
  • brass ceilling connector
  • ceiling connection length: 265 mm
  • installation type: ceiling
  • connection thread G ½
  • connection dimension: DN15
  • with integrated lighting
  • illuminant: 12 Volt DC 5 Watt IPX5 2700K
  • in: 100 - 240 Volt AC / 50-60 Hz
  • out: 12 Volt DC / 12 Watt SELV
  • scope of supply: includes 7 meter long connection cable and power supply, the power supply must be installed in accordance with DIN VDE 0100-701 outside the zones 0,1 and 2
  • TÜV certified
