Sondex Gasket Plate Heat Exchanger

By means of technological innovation Sondex has developed and designed a new generation of plate heat exchangers.

With the big range of plate heat exchangers Sondex has got the optimal technical solution for any possible task, with connection sizes from Ø15 to Ø500 mm covering a liquid flow of 50l/hour to 2000 m³/hour.

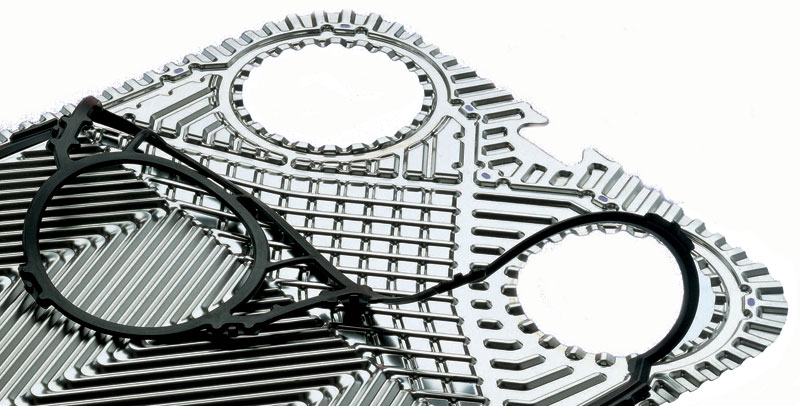

The construction of the inlet part makes a perfect distribution of the liquids across the heating surface. The inlet part is increased and designed with channels preventing "dead spots" on the plate heat exchanger. The inlet with channels secures a strong inlet part with a minimum of contact points.

A gasket plate heat exchanger consists of a number of pressed metal plates each with a rubber gasket. The gaskets are arranged in such a way so as to allow two fluids to pass in opposite directions up and down alternate channels.

The design of the exchanger enables it to be easily dismantled for cleaning or addition of plates.
