Formawall Graphix Series

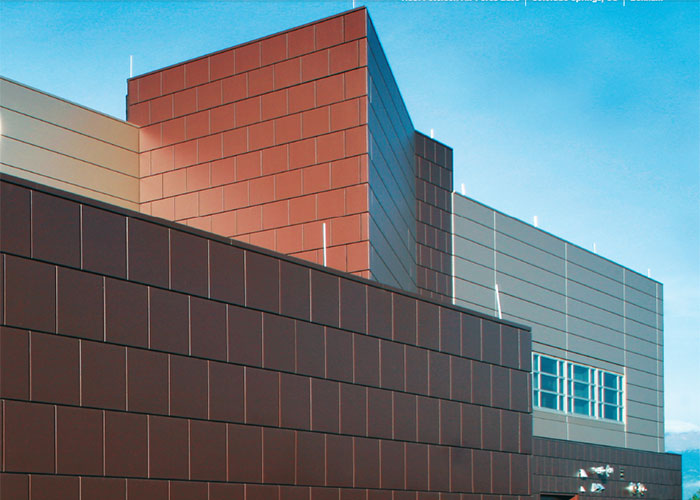

Formawall Graphix Series with Directional Reveals is a single component wall system that offers outstanding aesthetics and performance. The distinguishing element is a series of directional reveals that can be combined horizontally, vertically and diagonally on a single panel for a virtually unlimited array of patterns, forms and designs.
FEATURES & BENEFITS
- Panels can be segmented as frequently as every 12" [305mm] and can be installed vertically and horizontally
- Vertical, horizontal and sloped reveals provide unrivaled flexibility in design
- Panel finishes are available in a wide range of choices so your Graphix Series design may never be duplicated
- Reveal size, color and face texture can be variable within a single panel (limitations exist for some directional reveal types)
- Directional reveals limit the amount of actual joints, which reduces the risk of air and water infiltration
- Installing one panel that looks like several panels can dramatically reduce installation time and complexity — and may reduce the amount of material used on the project
- Combined with Formawall’s integrated components, including windows, louvers and sunshades, it’s all you need to build the complete wall in any climate
DESCRIPTION
JOINERY
- Horizontal oriented panel — Rainscreen, pressure-equalized and drainable joinery, 1/2" [13mm] nom. joint — standard
- Formawall IMV insulated metal vertical joint 5/8" [16mm] joint-standard
- Vertical oriented panel — Double tongue-and-groove, 1/8" [3mm] nom. joint — standard
- Segmented joint — 5/8" x 3/4" [16mm x 19mm] deep embossment with factory applied black gasket, standard
- Max. segments per panel — 24
- Min. length of segment — 1' [305mm]
SURFACE FINISH
- Exterior and interior feature non-directional embossed and smooth flat
PANEL LENGTH (Steel Face)
