Formawall Dimension Series

Formawall Dimension Series

Revolutionary — radically new or innovative


DESCRIPTION

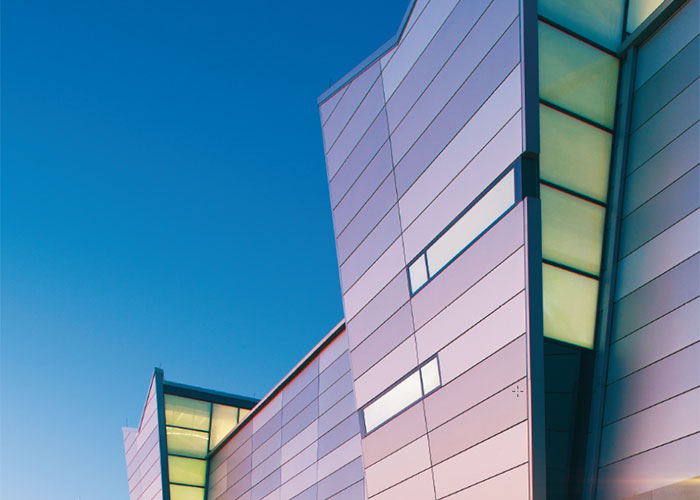

FORMAWALL Dimension Series has changed metal wall systems with a single panel system that provides outstanding thermal efficiency and moisture control. The aesthetics are just as amazing as the performance with a wide range of lengths, thicknesses and reveals, in addition to fully integrated components including windows, louvers and sunshades.

FORMAWALL Dimension Series offers virtually unlimited aesthetic possibilities, with a selection of panel options that include sleek and flat, steep slope, the notched pattern of DS59 or DS60, in addition to reveals (up to 6”) in a range of widths.

SUBSTRATE & CORE
  • Standard 22/26 gage G-90 galvanized steel face and liner with HCFC-free polyurethane or polyisocyanurate foam-insulated core
  • Optional gages available — consult CENTRIA
  • Optional stainless steel face sheet, 304 stainless steel, 22 or 20 gage, smooth, embossed or striated*
  • Optional .040" [1mm] aluminum face (2" [51mm] thick only), flat embossed or smooth striated*
JOINERY
  • Horizontal oriented panel — Rainscreen, pressure-equalized and drainable joinery, 1/2" [13mm] nom. joint — standard
    • Optional Pressure Equalized Vertical Seal Plate (3"-T only)
    • Optional Formawall IMV insulated metal vertical joint 5/8" [16mm] joint — standard
  • Vertical oriented panel — Double tongue-and-groove, 1/8" [3mm] nom. joint — standard
SURFACE FINISH
  • Exterior
    • Non-directional embossed flat or striated
    • Smooth flat or striated
  • Interior
    • Non-directional embossed planked or flat
    • Smooth planked
PANEL LENGTH
  • Smooth — 16' [4.88m] max.
  • Embossed striated — 37' [11.28m] max.
  • Embossed — 37' [11.28m] max.
  • Smooth striated — 20' [6.10m] max.
  • Duracast — 28' [8.53m] max.
  • Stainless — 16' [4.88m] max.
  • Aluminum — 12' 6" [3.81m] max.
*) Length restrictions apply, please consult CENTRIA

Brochures for Formawall Dimension Series

Brochures for Formawall Dimension Series
Preview Description Format Size Open
Centria Product Catalogue
PDF 5.4 MB Open
Formawall Brochure
PDF 24.5 MB Open
Product Literature
PDF   Open
Formawall Dimension Series Environmental Product Declarations (EPDs)
PDF 1.7 MB Open
Formawall Dimension Series Product Video
