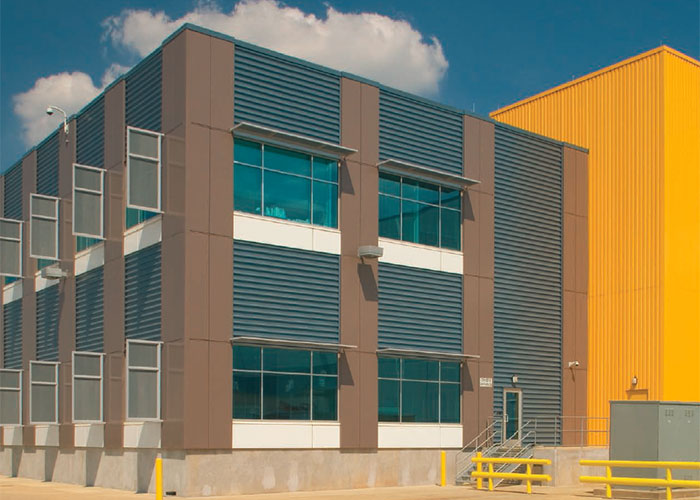

Cascade - Metal Panel System

CASCADE interchangeable single-skin metal panels set a new standard in aesthetics with a striking signature curve and a bold, flat, sloped rib profile. The result is a delicate play of light and shadow relief like no other panel on the market today.

FEATURES & BENEFITS

• Features concealed fasteners and a commonlock joint
• Includes seven unique profile rib panels that work with each other
• All-weather installation capability shortens installation time and permits fast-track scheduling
• The flexibility to insulate the panels offers many levels of thermal protection
• Can be installed vertically and horizontally
• Can be integrated with Concept Series panels
• Distinctive 1-1/2" deep rib consists of a soft curve combined with an angular sloped web for deep shadow relief

• Panel modules — 12" or 16" dependent upon profile selection
• Lengths up to 30' [9.14m]
• Concealed clips and fasteners
• Stand-off clips provide ventilation cavity and continuous drain plane behind panel
• Horizontal or vertical wall installation
• Common joint design permits multiple profile integration

• Standard 22–18 gage G-90 galvanized steel
• Galvanized steel, Galvalume® steel, aluminum or stainless steel — optional
• Smooth or embossed surface texture
