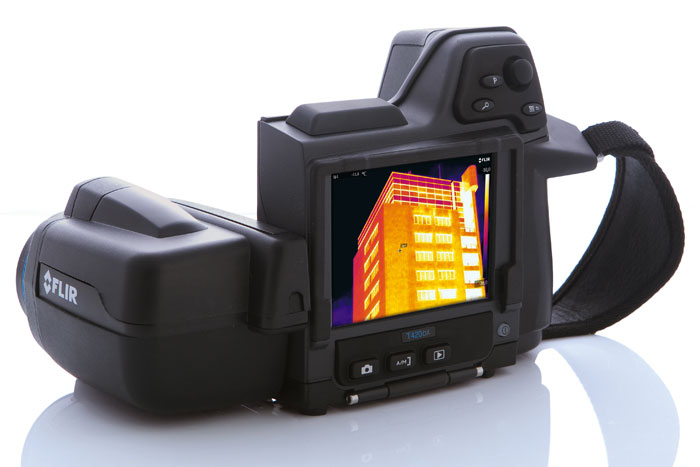

About FLIR T400bx-Series
Excellent ergonomics and extensive communication possibilities
The FLIR T400bx-Series offers a good performance at an affordable price. Excellent ergonomics and easy communication makes the FLIR T400bx-Series a truly userfriendly camera for the beginner and advanced user. With extensive communication possibilities including Wi-Fi and MeterLink (Bluetooth). The latest technology integrated in the camera allows for fast image processing and storage.
320 x 240 pixel resolution
The T400bx-Series has a thermal image resolution of 320 x 240 pixels.
The FLIR T400bx-series has a thermal sensitivity of < 45 mK.
High quality visual camera
Both models in the FLIR T400bx-Series have an integrated 3.1 Mpixel digital camera. This makes observing and inspecting faster and easier.
The T400bx-Series can measure temperatures up to +650°C.
Interchangeable infrared lenses
The T400bx-Series features a standard 25° lens and optional 6°, 15°, 45° and 90° lenses.
The T400bx-Series is equipped with standard video, USB outputs as well as a removable SD card.
Create visual and infrared non radiometric MPEG-4 video files.
Merges visual and thermal images to offer better analysis.
Temperature sound, image alarms
Make surveying easier and faster.
Create an infrared overlay on your visual image. Scalable, moveable and resizable.
Text and voice annotations
Text comments can be made from a pre-defined list or using the touch screen. A headset can be connected to make voice annotations.
Use the touch screen as pen and paper to add sketch annotations.
Indicate problem areas directly on the thermal image.
Radiometric IR video streaming
16 bit radiometric IR video can be streamed to a PC (via USB) running the FLIR R&D software.
FLIR uses a non proprietary radiometric JPEG image format that allows for post processing and report writing with Microsoft Word® based FLIR software.
3.5" LCD touch screen brings interactivity and user comfort to a new level.
Measurement spots, area with auto hot/cold spot indication, isotherms, ΔT calculation.
Humidity Alarm/Insulation Alarm
The Relative Humidity Alarm alerts you to the areas where there is a risk of condensation. An Insulation Alarm shows the insulation performance of the building structure.
Copy to USB
Transfer on board images or reports directly from the thermal imaging camera to a USB stick.
Create instant reports directly in camera, easily copy report to USB.
Multi Spectral Dynamic Imaging (MSX)
The innovative MSX feature produces an image more rich in every detail than ever before.
Connect to smartphone or tablet via Wi-Fi, using the FLIR Tools mobile app (Apple iOS and Android) for processing and sharing results as well as for remote control.
The direction in which the camera is looking is automatically added to every image.
FLIR Tools software
Run FLIR Tools software or other FLIR R&D software.
